#include <TTauri/GUI/GUISystem_vulkan.hpp>

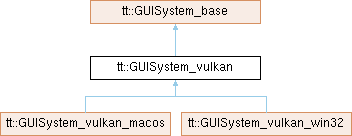

Inheritance diagram for tt::GUISystem_vulkan:

Public Member Functions
	GUISystem_vulkan (GUISystemDelegate delegate, const std::vector< const char > extensions)

	GUISystem_vulkan (const GUISystem_vulkan &)=delete

GUISystem_vulkan &	operator= (const GUISystem_vulkan &)=delete

	GUISystem_vulkan (GUISystem_vulkan &&)=delete

GUISystem_vulkan &	operator= (GUISystem_vulkan &&)=delete

void	initialize () noexcept(false) override

vk::DispatchLoaderDynamic	loader () const noexcept

void	destroySurfaceKHR (vk::SurfaceKHR surface)

Public Member Functions inherited from tt::GUISystem_base
	GUISystem_base (GUISystemDelegate *delegate) noexcept

	GUISystem_base (const GUISystem_base &)=delete

GUISystem_base &	operator= (const GUISystem_base &)=delete

	GUISystem_base (GUISystem_base &&)=delete

GUISystem_base &	operator= (GUISystem_base &&)=delete

template<typename T , typename... Args>
T *	makeWindow (Args &&... args)

ssize_t	getNumberOfWindows ()

void	render (hires_utc_clock::time_point displayTimePoint)

void	handleVerticalSync (hires_utc_clock::time_point displayTimePoint)

Static Public Member Functions
static VkBool32	debugUtilsMessageCallback (VkDebugUtilsMessageSeverityFlagBitsEXT messageSeverity, VkDebugUtilsMessageTypeFlagsEXT messageType, const VkDebugUtilsMessengerCallbackDataEXT pCallbackData, void pUserData)

Static Public Member Functions inherited from tt::GUISystem_base
static void	_handleVerticalSync (void *data, hires_utc_clock::time_point displayTimePoint)

Data Fields
vk::Instance	intrinsic
	Vulkan instance.

std::vector< const char * >	requiredExtensions
	List of extension that where requested when the instance was created.

std::vector< const char * >	requiredLayers
	List of extension that where requested when the instance was created.

vk::PhysicalDeviceFeatures	requiredFeatures
	List of required features for each device.

vk::PhysicalDeviceLimits	requiredLimits
	List of required limits for each device.

vk::ApplicationInfo	applicationInfo
	Application info passed when the instance was created.

Data Fields inherited from tt::GUISystem_base
GUISystemDelegate *	delegate

std::unique_ptr< VerticalSync >	verticalSync

std::vector< std::unique_ptr< GUIDevice > >	devices
	List of all devices.

ssize_t	previousNumberOfWindows = 0

Detailed Description

Vulkan GUIDevice controller.

Manages Vulkan device and a set of Windows.

Constructor & Destructor Documentation

◆ GUISystem_vulkan()

tt::GUISystem_vulkan::GUISystem_vulkan	(	GUISystemDelegate *	delegate,
		const std::vector< const char * >	extensions )

Create an instance of a GUIDevice. After the constructor is completed it may be used to get a Vulkan surface and passed to Window constructors.

Parameters

extensions a list of Vulkan extensions required. Most useful for including operating system specific surface extensions.

Member Function Documentation

◆ initialize()

void tt::GUISystem_vulkan::initialize ( )

overridevirtual

Implements tt::GUISystem_base.

Field Documentation

◆ applicationInfo

vk::ApplicationInfo tt::GUISystem_vulkan::applicationInfo

Application info passed when the instance was created.

◆ intrinsic

vk::Instance tt::GUISystem_vulkan::intrinsic

Vulkan instance.

◆ requiredExtensions

std::vector<const char *> tt::GUISystem_vulkan::requiredExtensions

List of extension that where requested when the instance was created.

◆ requiredFeatures

vk::PhysicalDeviceFeatures tt::GUISystem_vulkan::requiredFeatures

List of required features for each device.

◆ requiredLayers

std::vector<const char *> tt::GUISystem_vulkan::requiredLayers

List of extension that where requested when the instance was created.

◆ requiredLimits

vk::PhysicalDeviceLimits tt::GUISystem_vulkan::requiredLimits

List of required limits for each device.

The documentation for this class was generated from the following file:

hikogui/src/TTauri/GUI/GUISystem_vulkan.hpp
