#include <TTauri/Widgets/Widget.hpp>

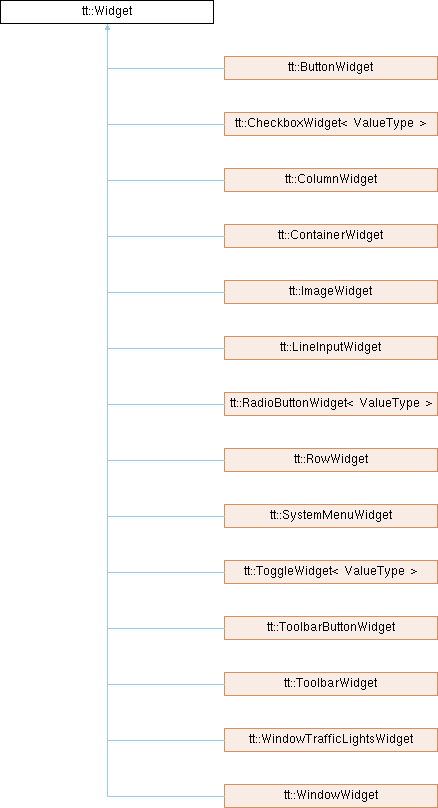

Inheritance diagram for tt::Widget:

Public Member Functions
	Widget (Window &window, Widget *parent, vec defaultExtent) noexcept

	Widget (const Widget &)=delete

Widget &	operator= (const Widget &)=delete

	Widget (Widget &&)=delete

Widget &	operator= (Widget &&)=delete

virtual Widget &	addWidget (Alignment alignment, std::unique_ptr< Widget > childWidget) noexcept
	Add a widget directly to this widget.

template<typename T , typename... Args>
T &	makeWidgetDirectly (Args &&... args)
	Add a widget directly to this widget.

template<typename T , typename... Args>
T &	makeWidget (Args &&... args)
	Add a widget directly to this widget.

template<typename T , typename... Args>
T &	makeAlignedWidgetDirectly (Alignment alignement, Args &&... args)
	Add a widget directly to this widget.

template<typename T , typename... Args>
T &	makeAlignedWidget (Alignment alignment, Args &&... args)
	Add a widget directly to this widget.

aarect	makeWindowRectangle () const noexcept
	Create a window rectangle from left, bottom, width and height Thread-safety: locks window.widgetSolverMutex.

void	setMinimumExtent (vec newMinimumExtent) noexcept

void	setMinimumExtent (float width, float height) noexcept

void	setPreferredExtent (vec newPreferredExtent) noexcept

void	setFixedExtent (vec newFixedExtent) noexcept

void	setFixedHeight (float height) noexcept

void	setFixedWidth (float width) noexcept

rhea::constraint	placeBelow (Widget const &rhs, float margin=theme->margin) const noexcept

rhea::constraint	placeAbove (Widget const &rhs, float margin=theme->margin) const noexcept

rhea::constraint	placeLeftOf (Widget const &rhs, float margin=theme->margin) const noexcept

rhea::constraint	placeRightOf (Widget const &rhs, float margin=theme->margin) const noexcept

rhea::constraint	placeAtTop (float margin=theme->margin) const noexcept

rhea::constraint	placeAtBottom (float margin=theme->margin) const noexcept

rhea::constraint	placeLeft (float margin=theme->margin) const noexcept

rhea::constraint	placeRight (float margin=theme->margin) const noexcept

vec	extent () const noexcept

void	setExtent (vec rhs) noexcept

vec	offsetFromParent () const noexcept

void	setOffsetFromParent (vec rhs) noexcept

vec	offsetFromWindow () const noexcept

void	setOffsetFromWindow (vec rhs) noexcept

aarect	rectangle () const noexcept
	Get the rectangle in local coordinates.

aarect	windowRectangle () const noexcept
	Get the rectangle in window coordinates.

aarect	clippingRectangle () const noexcept
	Get the clipping-rectangle in window coordinates.

GUIDevice *	device () const noexcept

virtual HitBox	hitBoxTest (vec position) const noexcept
	Find the widget that is under the mouse cursor.

virtual bool	acceptsFocus () const noexcept
	Check if the widget will accept keyboard focus.

ssize_t	nestingLevel () noexcept
	Get nesting level used for selecting colors for the widget.

float	z () noexcept
	Get z value for compositing order.

virtual int	needs (hires_utc_clock::time_point displayTimePoint) noexcept
	Request the needs of the widget.

virtual void	layout (hires_utc_clock::time_point displayTimePoint) noexcept
	Layout the widget.

int	layoutChildren (hires_utc_clock::time_point displayTimePoint, bool force) noexcept
	Layout children of this widget.

virtual void	draw (DrawContext const &drawContext, hires_utc_clock::time_point displayTimePoint) noexcept
	Draw widget.

virtual void	handleCommand (string_ltag command) noexcept
	Handle command.

virtual void	handleMouseEvent (MouseEvent const &event) noexcept

std::vector< Widget * >	childPointers (bool reverse) const noexcept

virtual Widget *	nextKeyboardWidget (Widget const *currentKeyboardWidget, bool reverse) const noexcept

virtual void	handleKeyboardEvent (KeyboardEvent const &event) noexcept

Data Fields
rhea::variable const	left
	Location of the frame compared to the window.

rhea::variable const	bottom

rhea::variable const	width

rhea::variable const	height

rhea::linear_expression const	right = left + width

rhea::linear_expression const	centre = left + width * 0.5

rhea::linear_expression const	top = bottom + height

rhea::linear_expression const	middle = bottom + height * 0.5

float	elevation

std::atomic< R32G32SFloat >	_extent

std::atomic< R32G32SFloat >	_offsetFromParent

std::atomic< R32G32SFloat >	_offsetFromWindow

std::atomic< bool >	forceLayout = true

std::atomic< bool >	forceRedraw = true

observable< bool >	enabled = true
	The widget is enabled.

Detailed Description

View of a widget. A view contains the dynamic data for a Widget. It is often accompanied with a Backing which contains that static data of an Widget and the drawing code. Backings are shared between Views.

Thread-safety: All method of the widget should lock the mutex, exceptions are: hitBoxTest(), needs() All public members should be thread-safe, for example: std::atomic and tt::observer The following methods should only be called from the render thread: needs(), layout(), layoutChildren(), draw(),

Constructor & Destructor Documentation

◆ Widget()

tt::Widget::Widget	(	Window &	window,
		Widget *	parent,
		vec	defaultExtent )

noexcept

Constructor for creating sub views.

Member Function Documentation

◆ acceptsFocus()

virtual bool tt::Widget::acceptsFocus ( ) const

inlinevirtualnoexcept

Check if the widget will accept keyboard focus.

Thread safety: reads atomics.

Reimplemented in tt::ButtonWidget, tt::CheckboxWidget< ValueType >, tt::LineInputWidget, tt::RadioButtonWidget< ValueType >, and tt::ToggleWidget< ValueType >.

◆ addWidget()

virtual Widget & tt::Widget::addWidget	(	Alignment	alignment,
		std::unique_ptr< Widget >	childWidget )

virtualnoexcept

Add a widget directly to this widget.

Thread safety: locks.

Reimplemented in tt::ColumnWidget, tt::RowWidget, and tt::ToolbarWidget.

◆ clippingRectangle()

aarect tt::Widget::clippingRectangle ( ) const

inlinenoexcept

Get the clipping-rectangle in window coordinates.

Thread safety: calls windowRectangle()

◆ draw()

virtual void tt::Widget::draw	(	DrawContext const &	drawContext,
		hires_utc_clock::time_point	displayTimePoint )

virtualnoexcept

Draw widget.

The overriding function should call the base class's draw(), the place where the call this function will determine the order of the vertices into each buffer. This is important when needing to do the painters algorithm for alpha-compositing. However the pipelines are always drawn in the same order.

Thread safety: locks, must be called from render-thread

Reimplemented in tt::ButtonWidget, tt::CheckboxWidget< ValueType >, tt::ImageWidget, tt::LineInputWidget, tt::RadioButtonWidget< ValueType >, tt::SystemMenuWidget, tt::ToggleWidget< ValueType >, tt::ToolbarButtonWidget, tt::ToolbarWidget, and tt::WindowTrafficLightsWidget.

◆ handleCommand()

virtual void tt::Widget::handleCommand ( string_ltag command )

virtualnoexcept

Handle command.

Thread safety: locks

Reimplemented in tt::ButtonWidget, tt::CheckboxWidget< ValueType >, tt::LineInputWidget, tt::RadioButtonWidget< ValueType >, and tt::ToggleWidget< ValueType >.

◆ handleKeyboardEvent()

virtual void tt::Widget::handleKeyboardEvent ( KeyboardEvent const & event )

inlinevirtualnoexcept

Handle keyboard event. Called by the operating system when editing text, or entering special keys

Thread safety: locks

Reimplemented in tt::LineInputWidget.

◆ handleMouseEvent()

virtual void tt::Widget::handleMouseEvent ( MouseEvent const & event )

inlinevirtualnoexcept

Handle mouse event. Called by the operating system to show the position and button state of the mouse. This is called very often so it must be made efficient. This function is also used to determine the mouse cursor.

Thread safety: locks

Reimplemented in tt::ButtonWidget, tt::CheckboxWidget< ValueType >, tt::ImageWidget, tt::LineInputWidget, tt::RadioButtonWidget< ValueType >, tt::ToggleWidget< ValueType >, tt::ToolbarButtonWidget, and tt::WindowTrafficLightsWidget.

◆ hitBoxTest()

virtual HitBox tt::Widget::hitBoxTest ( vec position ) const

virtualnoexcept

Find the widget that is under the mouse cursor.

Thread safety: locks.

Reimplemented in tt::ButtonWidget, tt::CheckboxWidget< ValueType >, tt::ImageWidget, tt::LineInputWidget, tt::RadioButtonWidget< ValueType >, tt::SystemMenuWidget, tt::ToggleWidget< ValueType >, tt::ToolbarButtonWidget, tt::ToolbarWidget, tt::WindowTrafficLightsWidget, and tt::WindowWidget.

◆ layout()

virtual void tt::Widget::layout ( hires_utc_clock::time_point displayTimePoint )

virtualnoexcept

Layout the widget.

super::layout() should be called at start of the overriden function.

Thread safety: locks, must be called from render-thread

Reimplemented in tt::ButtonWidget, tt::CheckboxWidget< ValueType >, tt::ImageWidget, tt::LineInputWidget, tt::RadioButtonWidget< ValueType >, tt::SystemMenuWidget, tt::ToggleWidget< ValueType >, and tt::WindowTrafficLightsWidget.

◆ layoutChildren()

int tt::Widget::layoutChildren	(	hires_utc_clock::time_point	displayTimePoint,
		bool	force )

noexcept

Layout children of this widget.

Thread safety: locks, must be called from render-thread

Parameters

force Force the layout of the widget.

◆ makeAlignedWidget()

template<typename T , typename... Args>

T & tt::Widget::makeAlignedWidget	(	Alignment	alignment,
		Args &&...	args )

inline

Add a widget directly to this widget.

Thread safety: modifies atomic. calls addWidget() and addWidgetDirectly()

◆ makeAlignedWidgetDirectly()

template<typename T , typename... Args>

T & tt::Widget::makeAlignedWidgetDirectly	(	Alignment	alignement,
		Args &&...	args )

inline

Add a widget directly to this widget.

Thread safety: calls _addWidget

◆ makeWidget()

template<typename T , typename... Args>

T & tt::Widget::makeWidget ( Args &&... args )

inline

Add a widget directly to this widget.

Thread safety: modifies atomic. calls addWidget() and addWidgetDirectly()

◆ makeWidgetDirectly()

template<typename T , typename... Args>

T & tt::Widget::makeWidgetDirectly ( Args &&... args )

inline

Add a widget directly to this widget.

Thread safety: calls _addWidget

◆ makeWindowRectangle()

aarect tt::Widget::makeWindowRectangle ( ) const

noexcept

Create a window rectangle from left, bottom, width and height Thread-safety: locks window.widgetSolverMutex.

◆ needs()

virtual int tt::Widget::needs ( hires_utc_clock::time_point displayTimePoint )

virtualnoexcept

Request the needs of the widget.

This function will be called for each widget on each frame. Therefor it is important to optimize this function.

Thread safety: reads atomics, must be called from render-thread.

Returns: If the widgets needs to be redrawn or layed out on this frame.

Reimplemented in tt::LineInputWidget.

◆ nestingLevel()

ssize_t tt::Widget::nestingLevel ( )

inlinenoexcept

Get nesting level used for selecting colors for the widget.

◆ rectangle()

aarect tt::Widget::rectangle ( ) const

inlinenoexcept

Get the rectangle in local coordinates.

Thread safety: reads atomics.

◆ windowRectangle()

aarect tt::Widget::windowRectangle ( ) const

inlinenoexcept

Get the rectangle in window coordinates.

Thread safety: reads atomics.

◆ z()

float tt::Widget::z ( )

inlinenoexcept

Get z value for compositing order.

Field Documentation

◆ enabled

observable<bool> tt::Widget::enabled = true

The widget is enabled.

◆ left

rhea::variable const tt::Widget::left

Location of the frame compared to the window.

Thread-safety: the box is not modified by the class.

The documentation for this class was generated from the following file:

hikogui/src/TTauri/Widgets/Widget.hpp
