#include <ttauri/widgets/boolean_checkbox_widget.hpp>

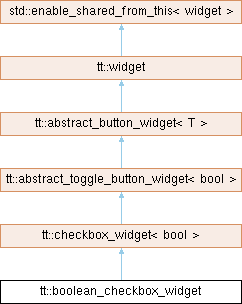

Inheritance diagram for tt::boolean_checkbox_widget:
Public Member Functions | |
| template<typename Value = observable<bool>> | |
| boolean_checkbox_widget (gui_window &window, std::shared_ptr< abstract_container_widget > parent, Value &&value={}) noexcept | |
 Public Member Functions inherited from tt::checkbox_widget< bool > | |
| checkbox_widget (gui_window &window, std::shared_ptr< abstract_container_widget > parent, value_type true_value, value_type false_value, Value &&value={}) noexcept | |
| void | init () noexcept override |
| Should be called right after allocating and constructing a widget. | |
| bool | update_constraints (hires_utc_clock::time_point display_time_point, bool need_reconstrain) noexcept override |
| Update the constraints of the widget. | |
| void | update_layout (hires_utc_clock::time_point displayTimePoint, bool need_layout) noexcept override |
| Update the internal layout of the widget. | |
| void | draw (draw_context context, hires_utc_clock::time_point display_time_point) noexcept override |
| Draw the widget. | |
| Public Member Functions inherited from tt::abstract_toggle_button_widget< T > | |
| template<typename Value = observable<value_type>> | |
| abstract_toggle_button_widget (gui_window &window, std::shared_ptr< abstract_container_widget > parent, value_type true_value, value_type false_value, Value &&value={}) noexcept | |
| void | toggle () noexcept |
| Public Member Functions inherited from tt::abstract_button_widget< T > | |
| template<typename Value = observable<value_type>> | |
| abstract_button_widget (gui_window &window, std::shared_ptr< abstract_container_widget > parent, value_type true_value, Value &&value={}) | |
| draw_context | make_draw_context (draw_context context) const noexcept override |
| Make a draw context for this widget. | |
| bool | accepts_keyboard_focus (keyboard_focus_group group) const noexcept |
| Check if the widget will accept keyboard focus. | |
| bool | handle_event (command command) noexcept |
| Handle command. | |
| bool | handle_event (mouse_event const &event) noexcept final |
| hit_box | hitbox_test (f32x4 window_position) const noexcept final |
| Find the widget that is under the mouse cursor. | |
| template<typename Callback > | |
| callback_ptr_type | subscribe (Callback &&callback) noexcept |
| Subscribe a callback to call when the button is activated. | |
| void | unsubscribe (callback_ptr_type &callback_ptr) noexcept |
| Unsubscribe a callback. | |
| Public Member Functions inherited from tt::widget | |
| widget (gui_window &window, std::shared_ptr< abstract_container_widget > parent) noexcept | |
| widget (const widget &)=delete | |
| widget & | operator= (const widget &)=delete |
| widget (widget &&)=delete | |
| widget & | operator= (widget &&)=delete |
| float | margin () const noexcept |
| Get the margin around the Widget. | |
| float | draw_layer () const noexcept |
| The first drawing layer of the widget. | |
| int | logical_layer () const noexcept |
| The logical layer of the widget. | |
| int | semantic_layer () const noexcept |
| The semantic layer of the widget. | |
| ranged_int< 3 > | width_resistance () const noexcept |
| Get the resistance in width. | |
| ranged_int< 3 > | height_resistance () const noexcept |
| Get the resistance in height. | |
| interval_vec2 | preferred_size () const noexcept |
| Get the size-range of the widget. | |
| relative_base_line | preferred_base_line () const noexcept |
| Get the relative_base_line of the widget. | |
| void | set_layout_parameters (aarect const &window_rectangle, aarect const &window_clipping_rectangle, float window_base_line=std::numeric_limits< float >::infinity()) noexcept |
| Set the location and size of the widget inside the window. | |
| aarect | window_rectangle () const noexcept |
| Get the rectangle in window coordinates. | |
| virtual aarect | window_clipping_rectangle () const noexcept |
| Get the clipping-rectangle in window coordinates. | |
| float | window_base_line () const noexcept |
| Get the base-line distance from the bottom of the window. | |
| aarect | rectangle () const noexcept |
| Get the rectangle in local coordinates. | |
| float | base_line () const noexcept |
| Get the base-line in local coordinates. | |
| gui_device * | device () const noexcept |
| virtual bool | handle_event (std::vector< command > const &commands) noexcept |
| virtual bool | handle_command_recursive (command command, std::vector< std::shared_ptr< widget > > const &reject_list) noexcept |
| Handle command recursive. | |
| virtual bool | handle_event (keyboard_event const &event) noexcept |
| Handle keyboard event. | |
| virtual std::shared_ptr< widget > | find_next_widget (std::shared_ptr< widget > const ¤t_keyboard_widget, keyboard_focus_group group, keyboard_focus_direction direction) const noexcept |
| Find the next widget that handles keyboard focus. | |
| std::shared_ptr< abstract_container_widget const > | shared_parent () const noexcept |
| Get a shared_ptr to the parent. | |
| std::shared_ptr< abstract_container_widget > | shared_parent () noexcept |
| Get a shared_ptr to the parent. | |
| abstract_container_widget const & | parent () const noexcept |
| Get a reference to the parent. | |
| abstract_container_widget & | parent () noexcept |
| Get a reference to the parent. | |
| bool | is_first (keyboard_focus_group group) const noexcept |
| Is this widget the first widget in the parent container. | |
| bool | is_last (keyboard_focus_group group) const noexcept |
| Is this widget the last widget in the parent container. | |
| Public Member Functions inherited from std::enable_shared_from_this< widget > | |
| T | enable_shared_from_this (T... args) |
| T | operator= (T... args) |
| T | shared_from_this (T... args) |
| T | ~enable_shared_from_this (T... args) |
Additional Inherited Members | |
| Public Types inherited from tt::checkbox_widget< bool > | |
| using | super |
| using | value_type |
| Public Types inherited from tt::abstract_toggle_button_widget< T > | |
| using | super = abstract_button_widget<T> |
| using | value_type = T |
| Public Types inherited from tt::abstract_button_widget< T > | |
| using | super = widget |
| using | value_type = T |
| using | notifier_type = notifier<void()> |
| using | callback_type = typename notifier_type::callback_type |
| using | callback_ptr_type = typename notifier_type::callback_ptr_type |
| Static Public Member Functions inherited from tt::widget | |
| static std::vector< std::shared_ptr< widget > > | parent_chain (std::shared_ptr< tt::widget > const &child_widget) noexcept |
| Get a list of parents of a given widget. | |
| Data Fields inherited from tt::checkbox_widget< bool > | |
| observable< label > | true_label |
| observable< label > | false_label |
| observable< label > | other_label |
| Data Fields inherited from tt::abstract_toggle_button_widget< T > | |
| value_type const | false_value |
| Data Fields inherited from tt::abstract_button_widget< T > | |
| value_type const | true_value |
| observable< value_type > | value |
| Data Fields inherited from tt::widget | |
| gui_window & | window |
| Convenient reference to the Window. | |
| observable< bool > | enabled = true |
| The widget is enabled. | |
Detailed Description
An abstract toggle button widget.
This widgets toggles a value from the true_value to false_value and back.
The documentation for this class was generated from the following file:
- hikogui/src/ttauri/widgets/boolean_checkbox_widget.hpp
