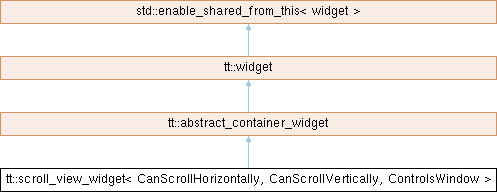

Inheritance diagram for tt::scroll_view_widget< CanScrollHorizontally, CanScrollVertically, ControlsWindow >:

Public Types
using	super = abstract_container_widget

Public Types inherited from tt::abstract_container_widget
using	super = widget

Public Member Functions
	scroll_view_widget (gui_window &window, std::shared_ptr< abstract_container_widget > parent) noexcept

void	init () noexcept override
	Should be called right after allocating and constructing a widget.

bool	update_constraints (hires_utc_clock::time_point display_time_point, bool need_reconstrain) noexcept override
	Update the constraints of the widget.

void	update_layout (hires_utc_clock::time_point display_time_point, bool need_layout) noexcept override
	Update the internal layout of the widget.

hit_box	hitbox_test (f32x4 window_position) const noexcept override
	Find the widget that is under the mouse cursor.

template<typename WidgetType = grid_layout_widget, typename... Args>
std::shared_ptr< WidgetType >	make_widget (Args &&... args) noexcept

bool	handle_event (mouse_event const &event) noexcept override

Public Member Functions inherited from tt::abstract_container_widget
	abstract_container_widget (gui_window &window, std::shared_ptr< abstract_container_widget > parent) noexcept

void	clear () noexcept
	Remove and deallocate all child widgets.

std::shared_ptr< widget >	add_widget (std::shared_ptr< widget > widget) noexcept
	Add a widget directly to this widget.

widget &	front () noexcept

widget const &	front () const noexcept

widget &	back () noexcept

widget const &	back () const noexcept

std::shared_ptr< abstract_container_widget const >	shared_from_this () const noexcept

std::shared_ptr< abstract_container_widget >	shared_from_this () noexcept

template<typename T , typename... Args>
std::shared_ptr< T >	make_widget (Args &&...args)
	Add a widget directly to this widget.

virtual bool	is_toolbar () const noexcept

void	draw (draw_context context, hires_utc_clock::time_point display_time_point) noexcept
	Draw the widget.

bool	handle_command_recursive (command command, std::vector< std::shared_ptr< widget > > const &reject_list) noexcept override
	Handle command recursive.

std::shared_ptr< widget const >	find_first_widget (keyboard_focus_group group) const noexcept

std::shared_ptr< widget const >	find_last_widget (keyboard_focus_group group) const noexcept

std::shared_ptr< widget >	find_next_widget (std::shared_ptr< widget > const &current_keyboard_widget, keyboard_focus_group group, keyboard_focus_direction direction) const noexcept
	Find the next widget that handles keyboard focus.

Public Member Functions inherited from tt::widget
	widget (gui_window &window, std::shared_ptr< abstract_container_widget > parent) noexcept

	widget (const widget &)=delete

widget &	operator= (const widget &)=delete

	widget (widget &&)=delete

widget &	operator= (widget &&)=delete

float	margin () const noexcept
	Get the margin around the Widget.

float	draw_layer () const noexcept
	The first drawing layer of the widget.

int	logical_layer () const noexcept
	The logical layer of the widget.

int	semantic_layer () const noexcept
	The semantic layer of the widget.

ranged_int< 3 >	width_resistance () const noexcept
	Get the resistance in width.

ranged_int< 3 >	height_resistance () const noexcept
	Get the resistance in height.

interval_vec2	preferred_size () const noexcept
	Get the size-range of the widget.

relative_base_line	preferred_base_line () const noexcept
	Get the relative_base_line of the widget.

void	set_layout_parameters (aarect const &window_rectangle, aarect const &window_clipping_rectangle, float window_base_line=std::numeric_limits< float >::infinity()) noexcept
	Set the location and size of the widget inside the window.

aarect	window_rectangle () const noexcept
	Get the rectangle in window coordinates.

virtual aarect	window_clipping_rectangle () const noexcept
	Get the clipping-rectangle in window coordinates.

float	window_base_line () const noexcept
	Get the base-line distance from the bottom of the window.

aarect	rectangle () const noexcept
	Get the rectangle in local coordinates.

float	base_line () const noexcept
	Get the base-line in local coordinates.

gui_device *	device () const noexcept

virtual bool	accepts_keyboard_focus (keyboard_focus_group group) const noexcept
	Check if the widget will accept keyboard focus.

virtual draw_context	make_draw_context (draw_context context) const noexcept
	Make a draw context for this widget.

virtual bool	handle_event (command command) noexcept
	Handle command.

virtual bool	handle_event (std::vector< command > const &commands) noexcept

virtual bool	handle_event (keyboard_event const &event) noexcept
	Handle keyboard event.

std::shared_ptr< abstract_container_widget const >	shared_parent () const noexcept
	Get a shared_ptr to the parent.

std::shared_ptr< abstract_container_widget >	shared_parent () noexcept
	Get a shared_ptr to the parent.

abstract_container_widget const &	parent () const noexcept
	Get a reference to the parent.

abstract_container_widget &	parent () noexcept
	Get a reference to the parent.

bool	is_first (keyboard_focus_group group) const noexcept
	Is this widget the first widget in the parent container.

bool	is_last (keyboard_focus_group group) const noexcept
	Is this widget the last widget in the parent container.

Public Member Functions inherited from std::enable_shared_from_this< widget >
T	enable_shared_from_this (T... args)

T	operator= (T... args)

T	shared_from_this (T... args)

T	~enable_shared_from_this (T... args)

Static Public Attributes
static constexpr bool	can_scroll_horizontally = CanScrollHorizontally

static constexpr bool	can_scroll_vertically = CanScrollVertically

static constexpr bool	controls_window = ControlsWindow

Additional Inherited Members
Static Public Member Functions inherited from tt::widget
static std::vector< std::shared_ptr< widget > >	parent_chain (std::shared_ptr< tt::widget > const &child_widget) noexcept
	Get a list of parents of a given widget.

Data Fields inherited from tt::widget
gui_window &	window
	Convenient reference to the Window.

observable< bool >	enabled = true
	The widget is enabled.

Member Function Documentation

◆ handle_event()

template<bool CanScrollHorizontally = true, bool CanScrollVertically = true, bool ControlsWindow = true>

bool tt::scroll_view_widget< CanScrollHorizontally, CanScrollVertically, ControlsWindow >::handle_event ( mouse_event const & event )

inlineoverridevirtualnoexcept

Handle mouse event. Called by the operating system to show the position and button state of the mouse. This is called very often so it must be made efficient. This function is also used to determine the mouse cursor.

In most cased overriding methods should call the super's handle_event() at the start of the function, to detect hover.

When this method does not handle the event the window will call handle_event() on the widget's parent.

Parameters

event The mouse event, positions are in window coordinates.

Returns: If this widget has handled the mouse event.

Reimplemented from tt::widget.

◆ hitbox_test()

template<bool CanScrollHorizontally = true, bool CanScrollVertically = true, bool ControlsWindow = true>

hit_box tt::scroll_view_widget< CanScrollHorizontally, CanScrollVertically, ControlsWindow >::hitbox_test ( f32x4 window_position ) const

inlineoverridevirtualnoexcept

Find the widget that is under the mouse cursor.

This function will recursively test with visual child widgets, when widgets overlap on the screen the hitbox object with the highest elevation is returned.

Parameters

window_position The coordinate of the mouse on the window. Use fromWindowTransform to convert to widget-local coordinates.

Returns: A hit_box object with the cursor-type and a reference to the widget.

Reimplemented from tt::abstract_container_widget.

◆ init()

template<bool CanScrollHorizontally = true, bool CanScrollVertically = true, bool ControlsWindow = true>

void tt::scroll_view_widget< CanScrollHorizontally, CanScrollVertically, ControlsWindow >::init ( )

inlineoverridevirtualnoexcept

Should be called right after allocating and constructing a widget.

Reimplemented from tt::widget.

◆ update_constraints()

template<bool CanScrollHorizontally = true, bool CanScrollVertically = true, bool ControlsWindow = true>

bool tt::scroll_view_widget< CanScrollHorizontally, CanScrollVertically, ControlsWindow >::update_constraints	(	hires_utc_clock::time_point	display_time_point,
		bool	need_reconstrain )

inlineoverridevirtualnoexcept

Update the constraints of the widget.

This function is called on each vertical sync, even if no drawing is to be done. It should recursively call updateConstraints() on each of the visible children, so they get a chance to update.

This function may be used for expensive calculations, such as text-shaping, which should only be done when the data changes. Because this function is called on every vertical sync it should cache these calculations.

Subclasses should call updateConstraints() on its base-class to check if the constraints where changed. Widget::update_constraints() will check if requestConstraints was set. Container::update_constraints() will check if any of the children changed constraints.

If the container, due to a change in constraints, wants the window to resize to the minimum size it should set window.requestResize to true.

This function will change what is returned by preferred_size() and preferred_base_line().

Precondition: mutex must be locked by current thread.

Parameters

display_time_point	The time point when the widget will be shown on the screen.
need_reconstrain	Force the widget to re-constrain.

Returns: True if its or any children's constraints has changed.

Reimplemented from tt::abstract_container_widget.

◆ update_layout()

template<bool CanScrollHorizontally = true, bool CanScrollVertically = true, bool ControlsWindow = true>

void tt::scroll_view_widget< CanScrollHorizontally, CanScrollVertically, ControlsWindow >::update_layout	(	hires_utc_clock::time_point	display_time_point,
		bool	need_layout )

inlineoverridevirtualnoexcept

Update the internal layout of the widget.

This function is called on each vertical sync, even if no drawing is to be done. It should recursively call updateLayout() on each of the visible children, so they get a chance to update.

This function may be used for expensive calculations, such as geometry calculations, which should only be done when the data or sizes change. Because this function is called on every vertical sync it should cache these calculations.

This function will likely call set_window_rectangle() and set_window_base_line() on its children, before calling updateLayout() on that child.

Subclasses should call updateLayout() on its children, call updateLayout() on its base class with forceLayout argument to the result of layoutRequest.exchange(false).

Precondition: mutex must be locked by current thread.

Parameters

display_time_point	The time point when the widget will be shown on the screen.
need_layout	Force the widget to layout

Reimplemented from tt::abstract_container_widget.

The documentation for this class was generated from the following file:

hikogui/src/ttauri/widgets/scroll_view_widget.hpp
