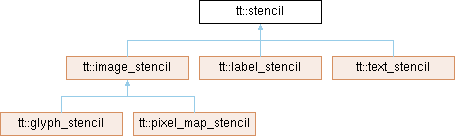

Inheritance diagram for tt::stencil:

Public Member Functions
	stencil (alignment alignment)

	stencil (stencil const &) noexcept=delete

	stencil (stencil &&) noexcept=delete

stencil &	operator= (stencil const &) noexcept=delete

stencil &	operator= (stencil &&) noexcept=delete

virtual extent2	preferred_extent () noexcept
	Return the extent that this cell wants to be drawn as.

virtual void	set_layout_parameters (aarectangle const &rectangle, float base_line_position=std::numeric_limits< float >::infinity()) noexcept
	Pass layout parameters in local coordinates.

virtual void	draw (draw_context context, tt::color color=tt::color{}, matrix3 transform=geo::identity()) noexcept=0
	Draw the cell.

Static Public Member Functions
static std::unique_ptr< class image_stencil >	make_unique (alignment alignment, icon const &icon)

static std::unique_ptr< class text_stencil >	make_unique (alignment alignment, std::u8string const &text, text_style const &style)

static std::unique_ptr< class label_stencil >	make_unique (alignment alignment, tt::label const &label, text_style const &style)

Member Function Documentation

◆ draw()

pure virtualnoexcept

Draw the cell.

Parameters

context	The current draw context.
color	The color to use for drawing.

virtual extent2 tt::stencil::preferred_extent ( )

inlinevirtualnoexcept

Return the extent that this cell wants to be drawn as.

virtual void tt::stencil::set_layout_parameters	(	aarectangle const &	rectangle,
		float	base_line_position = std::numeric_limits<float>::infinity() )

inlinevirtualnoexcept

Pass layout parameters in local coordinates.

Parameters

rectangle	The rectangle the stencil will be drawn into.
base_line_position	The position of the base line within the rectangle.

Reimplemented in tt::label_stencil.

The documentation for this class was generated from the following file:
