hi::v1::label_widget Class Reference

#include <hikogui/widgets/label_widget.hpp>

Inheritance diagram for hi::v1::label_widget:

Public Types
using	super = widget

Public Member Functions
	label_widget (widget *parent, label_widget_attribute auto &&...attributes) noexcept
	Construct a label widget.
Public Member Functions inherited from hi::v1::widget
	widget (widget *parent) noexcept
	widget (const widget &)=delete
widget &	operator= (const widget &)=delete
	widget (widget &&)=delete
widget &	operator= (widget &&)=delete
generator< widget_intf & >	children (bool include_invisible) noexcept override
	Get a list of child widgets.
hitbox	hitbox_test (point2 position) const noexcept override
	Find the widget that is under the mouse cursor.
virtual hitbox	hitbox_test_from_parent (point2 position) const noexcept
	Call hitbox_test from a parent widget.
virtual hitbox	hitbox_test_from_parent (point2 position, hitbox sibling_hitbox) const noexcept
	Call hitbox_test from a parent widget.
bool	accepts_keyboard_focus (keyboard_focus_group group) const noexcept override
	Check if the widget will accept keyboard focus.
box_constraints	update_constraints () noexcept override
	Update the constraints of the widget.
void	set_layout (widget_layout const &context) noexcept override
	Update the internal layout of the widget.
widget_layout const &	layout () const noexcept override
	Get the current layout for this widget.
void	draw (draw_context const &context) noexcept override
	Draw the widget.
bool	process_event (gui_event const &event) const noexcept override
	Send a event to the window.
void	request_redraw () const noexcept override
	Request the widget to be redrawn on the next frame.
bool	handle_event (gui_event const &event) noexcept override
	Handle command.
bool	handle_event_recursive (gui_event const &event, std::vector< widget_id > const &reject_list=std::vector< widget_id >{}) noexcept override
	Handle command recursive.
virtual widget_id	find_next_widget (widget_id current_keyboard_widget, keyboard_focus_group group, keyboard_focus_direction direction) const noexcept override
	Find the next widget that handles keyboard focus.
widget_id	find_first_widget (keyboard_focus_group group) const noexcept override
widget_id	find_last_widget (keyboard_focus_group group) const noexcept override
bool	is_first (keyboard_focus_group group) const noexcept
	Is this widget the first widget in the parent container.
bool	is_last (keyboard_focus_group group) const noexcept
	Is this widget the last widget in the parent container.
void	scroll_to_show (hi::aarectangle rectangle) noexcept override
	Scroll to show the given rectangle on the window.
void	set_window (gui_window *window) noexcept override
	Set the window for this tree of widgets.
gui_window *	window () const noexcept override
	Get the window that the widget is owned by.
hi::theme const &	theme () const noexcept
gfx_surface const *	surface () const noexcept
virtual color	background_color () const noexcept
virtual color	foreground_color () const noexcept
virtual color	focus_color () const noexcept
virtual color	accent_color () const noexcept
virtual color	label_color () const noexcept
virtual generator< widget_intf & >	children (bool include_invisible) noexcept=0
	Get a list of child widgets.
virtual generator< widget_intf const & >	children (bool include_invisible) const noexcept final
	Get a list of child widgets.
virtual void	scroll_to_show (hi::aarectangle rectangle) noexcept=0
	Scroll to show the given rectangle on the window.
void	scroll_to_show () noexcept
	Scroll to show the important part of the widget.
Public Member Functions inherited from hi::v1::widget_intf
	widget_intf (widget_intf *parent) noexcept
std::vector< widget_id >	parent_chain () const noexcept
	Get a list of parents of a given widget.
void	scroll_to_show () noexcept
	Scroll to show the important part of the widget.

Data Fields
observer< label >	label
	The label to display.
observer< alignment >	alignment = hi::alignment::top_flush()
	How the label and icon are aligned.
observer< semantic_text_style >	text_style = semantic_text_style::label
	The text style to display the label's text in and color of the label's (non-color) icon.
Data Fields inherited from hi::v1::widget
observer< widget_mode >	mode = widget_mode::enabled
	The widget mode.
observer< bool >	hover = false
	Mouse cursor is hovering over the widget.
observer< bool >	focus = false
	The widget has keyboard focus.
int	semantic_layer = 0
	The draw layer of the widget.
int	logical_layer = 0
	The logical layer of the widget.
observer< extent2 >	minimum = extent2{}
	The minimum size this widget is allowed to be.
observer< extent2 >	maximum = extent2::large()
	The maximum size this widget is allowed to be.
Data Fields inherited from hi::v1::widget_intf
widget_id	id = {}
	The numeric identifier of a widget.
widget_intf *	parent = nullptr
	Pointer to the parent widget.

Detailed Description

The GUI widget displays and lays out text together with an icon.

This widget is often used by other widgets. For example checkboxes display a label representing their state next to the checkbox itself.

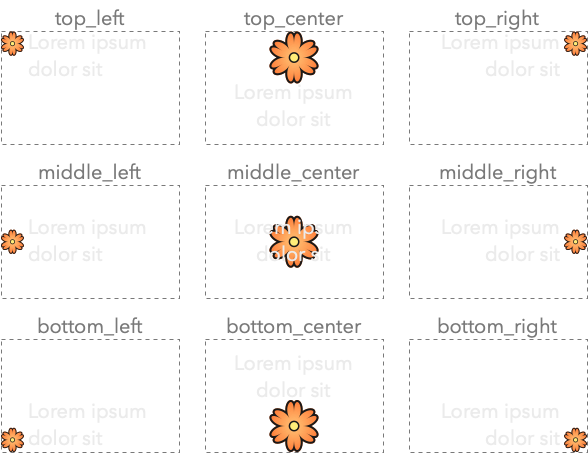

The alignment of icon and text is shown in the following image:

Here is an example on how to create a label:

Constructor & Destructor Documentation

label_widget()

hi::v1::label_widget::label_widget ( widget * parent, label_widget_attribute auto &&... attributes )

inlinenoexcept

Construct a label widget.

See also

label_widget::alignment

Parameters

parent	The parent widget that owns this radio button widget.
attributes	Different attributes used to configure the label widget: a label, alignment or text_style

Field Documentation

alignment

observer<alignment> hi::v1::label_widget::alignment = hi::alignment::top_flush()

How the label and icon are aligned.

Different layouts:

• alignment::top_left: icon and text are inline with each other, with the icon in the top-left corner.
• alignment::top_right: icon and text are inline with each other, with the icon in the top-right corner.
• alignment::middle_left: icon and text are inline with each other, with the icon in the middle-left.
• alignment::middle_right: icon and text are inline with each other, with the icon in the middle-right.
• alignment::bottom_left: icon and text are inline with each other, with the icon in the bottom-left.
• alignment::bottom_right: icon and text are inline with each other, with the icon in the bottom-right.
• alignment::top_center: Larger icon above the text, both center aligned.
• alignment::bottom_center: Larger icon below the text, both center aligned. used with a pixmap icon.

label

observer<label> hi::v1::label_widget::label

The label to display.

text_style

observer<semantic_text_style> hi::v1::label_widget::text_style = semantic_text_style::label

The text style to display the label's text in and color of the label's (non-color) icon.

---

The documentation for this class was generated from the following file:

• hikogui/src/hikogui/widgets/label_widget.hpp
