#include <hikogui/widgets/scroll_widget.hpp>

Inheritance diagram for hi::v1::scroll_widget< Axis >:

Public Types
using	super = widget

using	horizontal_scroll_bar_type = scroll_bar_widget<axis::horizontal>

using	vertical_scroll_bar_type = scroll_bar_widget<axis::vertical>

Public Member Functions
	scroll_widget (widget *parent) noexcept
	Constructs an empty scroll widget.

template<typename Widget , typename... Args>
Widget &	make_widget (Args &&...args) noexcept
	Add a content widget directly to this scroll widget.

Public Member Functions inherited from hi::v1::widget
	widget (widget *parent) noexcept

	widget (const widget &)=delete

widget &	operator= (const widget &)=delete

	widget (widget &&)=delete

widget &	operator= (widget &&)=delete

generator< widget_intf & >	children (bool include_invisible) noexcept override
	Get a list of child widgets.

hitbox	hitbox_test (point2 position) const noexcept override
	Find the widget that is under the mouse cursor.

virtual hitbox	hitbox_test_from_parent (point2 position) const noexcept
	Call hitbox_test from a parent widget.

virtual hitbox	hitbox_test_from_parent (point2 position, hitbox sibling_hitbox) const noexcept
	Call hitbox_test from a parent widget.

bool	accepts_keyboard_focus (keyboard_focus_group group) const noexcept override
	Check if the widget will accept keyboard focus.

box_constraints	update_constraints () noexcept override
	Update the constraints of the widget.

void	set_layout (widget_layout const &context) noexcept override
	Update the internal layout of the widget.

widget_layout const &	layout () const noexcept override
	Get the current layout for this widget.

void	draw (draw_context const &context) noexcept override
	Draw the widget.

bool	process_event (gui_event const &event) const noexcept override
	Send a event to the window.

void	request_redraw () const noexcept override
	Request the widget to be redrawn on the next frame.

bool	handle_event (gui_event const &event) noexcept override
	Handle command.

bool	handle_event_recursive (gui_event const &event, std::vector< widget_id > const &reject_list=std::vector< widget_id >{}) noexcept override
	Handle command recursive.

virtual widget_id	find_next_widget (widget_id current_keyboard_widget, keyboard_focus_group group, keyboard_focus_direction direction) const noexcept override
	Find the next widget that handles keyboard focus.

widget_id	find_first_widget (keyboard_focus_group group) const noexcept override

widget_id	find_last_widget (keyboard_focus_group group) const noexcept override

bool	is_first (keyboard_focus_group group) const noexcept
	Is this widget the first widget in the parent container.

bool	is_last (keyboard_focus_group group) const noexcept
	Is this widget the last widget in the parent container.

void	scroll_to_show (hi::aarectangle rectangle) noexcept override
	Scroll to show the given rectangle on the window.

void	set_window (gui_window *window) noexcept override
	Set the window for this tree of widgets.

gui_window *	window () const noexcept override
	Get the window that the widget is owned by.

hi::theme const &	theme () const noexcept

gfx_surface const *	surface () const noexcept

virtual color	background_color () const noexcept

virtual color	foreground_color () const noexcept

virtual color	focus_color () const noexcept

virtual color	accent_color () const noexcept

virtual color	label_color () const noexcept

virtual generator< widget_intf & >	children (bool include_invisible) noexcept=0
	Get a list of child widgets.

virtual generator< widget_intf const & >	children (bool include_invisible) const noexcept final
	Get a list of child widgets.

virtual void	scroll_to_show (hi::aarectangle rectangle) noexcept=0
	Scroll to show the given rectangle on the window.

void	scroll_to_show () noexcept
	Scroll to show the important part of the widget.

Public Member Functions inherited from hi::v1::widget_intf
	widget_intf (widget_intf *parent) noexcept

std::vector< widget_id >	parent_chain () const noexcept
	Get a list of parents of a given widget.

void	scroll_to_show () noexcept
	Scroll to show the important part of the widget.

Static Public Attributes
static constexpr hi::axis	axis = Axis

Additional Inherited Members
Data Fields inherited from hi::v1::widget
observer< widget_mode >	mode = widget_mode::enabled
	The widget mode.

observer< bool >	hover = false
	Mouse cursor is hovering over the widget.

observer< bool >	focus = false
	The widget has keyboard focus.

int	semantic_layer = 0
	The draw layer of the widget.

int	logical_layer = 0
	The logical layer of the widget.

observer< extent2 >	minimum = extent2{}
	The minimum size this widget is allowed to be.

observer< extent2 >	maximum = extent2::large()
	The maximum size this widget is allowed to be.

Data Fields inherited from hi::v1::widget_intf
widget_id	id = {}
	The numeric identifier of a widget.

widget_intf *	parent = nullptr
	Pointer to the parent widget.

Detailed Description

template<axis Axis = axis::both>
class hi::v1::scroll_widget< Axis >

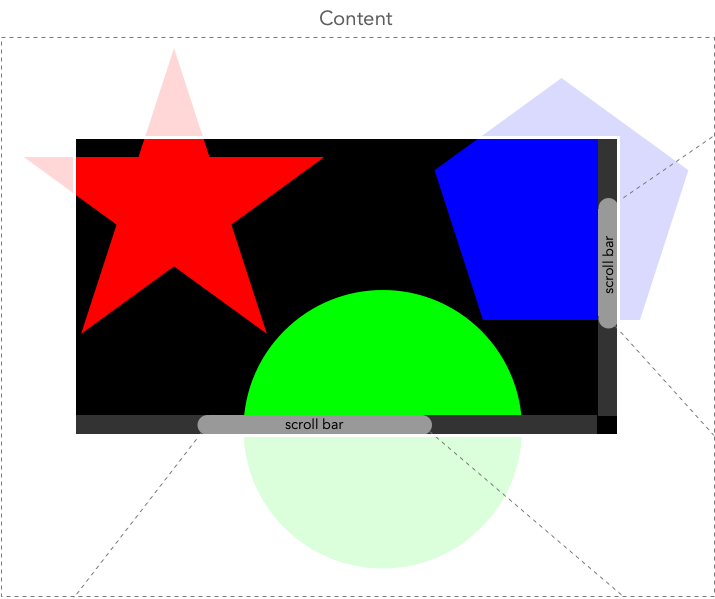

The scroll widget allows a content widget to be shown in less space than is required.

The user can then show the part of the content widget by using the scroll-bar widgets which are provided by the scroll widget.

The size of the scroll widget is based on the widget::minimum_size(), widget::preferred_size() and widget::maximum_size() of the content widget together with the space needed for the scrollbars.

In the directions that are allowed for scrolling the minimum size of the scroll widget is adjusted to be much smaller, up to the smallest size of the scroll-bar widget in that direction.

Scroll-bars are automatically added when the actual size of the scroll widget is smaller than the content, this will happen even if the template parameters given did not allow scrolling in that direction. This is useful behavior when the scroll widget is part of an overlay widget which was unable to size to the minimum size requested.

Template Parameters

Axis	the axis that the content may be scrolled. Allowed values are `axis::horizontal`, `axis::vertical` or `axis::both`.

Constructor & Destructor Documentation

◆ scroll_widget()

template<axis Axis = axis::both>

hi::v1::scroll_widget< Axis >::scroll_widget ( widget * parent )

inlinenoexcept

Constructs an empty scroll widget.

Parameters

parent The parent widget.

Member Function Documentation

◆ make_widget()

template<axis Axis = axis::both>

template<typename Widget , typename... Args>

Widget & hi::v1::scroll_widget< Axis >::make_widget ( Args &&... args )

inlinenoexcept

Add a content widget directly to this scroll widget.

This widget is added as the content widget.

Precondition: No content widgets have been added before.

Template Parameters

Widget The type of the widget to be constructed.

Parameters

args	The arguments passed to the constructor of the widget.

Returns: A reference to the widget that was created.

The documentation for this class was generated from the following file:

hikogui/src/hikogui/widgets/scroll_widget.hpp
