hi::v1::scroll_widget< Axis > Class Template Reference

#include <hikogui/widgets/scroll_widget.hpp>

Inheritance diagram for hi::v1::scroll_widget< Axis >:

Public Types
using	super = widget
using	horizontal_scroll_bar_type = scroll_bar_widget<axis::horizontal>
using	vertical_scroll_bar_type = scroll_bar_widget<axis::vertical>

Public Member Functions
	scroll_widget (widget *parent) noexcept
	Constructs an empty scroll widget.
template<typename Widget , typename... Args>
Widget &	make_widget (Args &&...args) noexcept
	Add a content widget directly to this scroll widget.
Public Member Functions inherited from hi::v1::widget
	widget (widget *parent) noexcept
	widget (const widget &)=delete
widget &	operator= (const widget &)=delete
	widget (widget &&)=delete
widget &	operator= (widget &&)=delete
virtual hitbox	hitbox_test_from_parent (point2i position) const noexcept
	Call hitbox_test from a parent widget.
virtual hitbox	hitbox_test_from_parent (point2i position, hitbox sibling_hitbox) const noexcept
	Call hitbox_test from a parent widget.
virtual bool	accepts_keyboard_focus (keyboard_focus_group group) const noexcept
	Check if the widget will accept keyboard focus.
widget_layout const &	layout () const noexcept
	Get the current layout for this widget.
virtual bool	process_event (gui_event const &event) const noexcept
void	request_redraw () const noexcept
	Request the widget to be redrawn on the next frame.
virtual bool	handle_event (gui_event const &event) noexcept
	Handle command.
virtual bool	handle_event_recursive (gui_event const &event, std::vector< widget const * > const &reject_list=std::vector< widget const * >{}) noexcept
	Handle command recursive.
virtual widget const *	find_next_widget (widget const *current_keyboard_widget, keyboard_focus_group group, keyboard_focus_direction direction) const noexcept
	Find the next widget that handles keyboard focus.
widget const *	find_first_widget (keyboard_focus_group group) const noexcept
widget const *	find_last_widget (keyboard_focus_group group) const noexcept
bool	is_first (keyboard_focus_group group) const noexcept
	Is this widget the first widget in the parent container.
bool	is_last (keyboard_focus_group group) const noexcept
	Is this widget the last widget in the parent container.
virtual void	scroll_to_show (hi::aarectanglei rectangle) noexcept
	Scroll to show the given rectangle on the window.
void	scroll_to_show () noexcept
	Scroll to show the important part of the widget.
std::vector< widget const * >	parent_chain () const noexcept
	Get a list of parents of a given widget.
virtual gui_window *	window () const noexcept
virtual hi::theme const &	theme () const noexcept
virtual gfx_surface const *	surface () const noexcept
virtual color	background_color () const noexcept
virtual color	foreground_color () const noexcept
virtual color	focus_color () const noexcept
virtual color	accent_color () const noexcept
virtual color	label_color () const noexcept
Public Member Functions inherited from std::enable_shared_from_this< widget >
T	enable_shared_from_this (T... args)
T	operator= (T... args)
T	shared_from_this (T... args)
T	~enable_shared_from_this (T... args)

Static Public Attributes
static constexpr hi::axis	axis = Axis

Additional Inherited Members
Data Fields inherited from hi::v1::widget
widget *	parent = nullptr
	Pointer to the parent widget.
uint32_t	id = 0
	The numeric identifier of a widget.
observer< widget_mode >	mode = widget_mode::enabled
	The widget mode.
observer< bool >	hover = false
	Mouse cursor is hovering over the widget.
observer< bool >	focus = false
	The widget has keyboard focus.
int	semantic_layer = 0
	The draw layer of the widget.
int	logical_layer = 0
	The logical layer of the widget.
observer< extent2i >	minimum = extent2i{}
	The minimum size this widget is allowed to be.
observer< extent2i >	maximum = extent2i::large()
	The maximum size this widget is allowed to be.

Detailed Description

template<axis Axis = axis::both>
class hi::v1::scroll_widget< Axis >

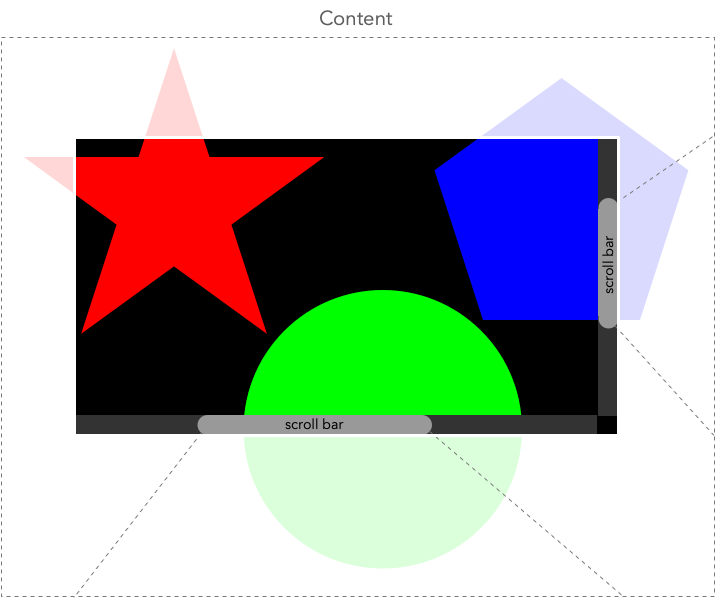

The scroll widget allows a content widget to be shown in less space than is required.

The user can then show the part of the content widget by using the scroll-bar widgets which are provided by the scroll widget.

The size of the scroll widget is based on the widget::minimum_size(), widget::preferred_size() and widget::maximum_size() of the content widget together with the space needed for the scrollbars.

In the directions that are allowed for scrolling the minimum size of the scroll widget is adjusted to be much smaller, up to the smallest size of the scroll-bar widget in that direction.

Scroll-bars are automatically added when the actual size of the scroll widget is smaller than the content, this will happen even if the template parameters given did not allow scrolling in that direction. This is useful behavior when the scroll widget is part of an overlay widget which was unable to size to the minimum size requested.

Template Parameters

Axis	the axis that the content may be scrolled. Allowed values are axis::horizontal, axis::vertical or axis::both.

Constructor & Destructor Documentation

scroll_widget()

template<axis Axis = axis::both>

hi::v1::scroll_widget< Axis >::scroll_widget ( widget * parent )

inlinenoexcept

Constructs an empty scroll widget.

Parameters

parent

The parent widget.

Member Function Documentation

make_widget()

template<axis Axis = axis::both>

template<typename Widget , typename... Args>

Widget & hi::v1::scroll_widget< Axis >::make_widget ( Args &&... args )

inlinenoexcept

Add a content widget directly to this scroll widget.

This widget is added as the content widget.

Precondition

No content widgets have been added before.

Template Parameters

Widget

The type of the widget to be constructed.

Parameters

args	The arguments passed to the constructor of the widget.

Returns

A reference to the widget that was created.

---

The documentation for this class was generated from the following file:

• hikogui/src/hikogui/widgets/scroll_widget.hpp
