hi::v1::row_column_widget< Prefix, Axis > Class Template Reference

#include <hikogui/widgets/row_column_widget.hpp>

Inheritance diagram for hi::v1::row_column_widget< Prefix, Axis >:

Public Types
using	super = widget
Public Types inherited from hi::v1::widget
using	callback_token = notifier<void()>::callback_token
using	awaiter_type = notifier<void()>::awaiter_type

Public Member Functions
	row_column_widget (widget *parent) noexcept
	Constructs an empty row/column widget.
template<typename Widget , typename... Args>
Widget &	make_widget (Args &&...args)
	Add a widget directly to this grid-widget.
void	clear () noexcept
	Remove and deallocate all child widgets.
Public Member Functions inherited from hi::v1::widget
	widget (widget *parent) noexcept
	widget (widget const &)=delete
	widget (widget &&)=delete
widget &	operator= (widget &&)=delete
widget &	operator= (widget const &)=delete
generator< widget & >	children (bool include_invisible) noexcept
virtual hitbox	hitbox_test_from_parent (point2i position) const noexcept
	Call hitbox_test from a parent widget.
virtual hitbox	hitbox_test_from_parent (point2i position, hitbox sibling_hitbox) const noexcept
	Call hitbox_test from a parent widget.
virtual bool	accepts_keyboard_focus (keyboard_focus_group group) const noexcept
	Check if the widget will accept keyboard focus.
void	reset_layout (gui_window *new_window, gfx_surface *new_surface, float new_scale) noexcept
	Reset the layout.
virtual sub_theme_selector_type	sub_theme_selector () const noexcept
virtual bool	process_event (gui_event const &event) const noexcept
virtual void	request_redraw () const noexcept
	Request the widget to be redrawn on the next frame.
virtual bool	handle_event (gui_event const &event) noexcept
	Handle command.
virtual bool	handle_event_recursive (gui_event const &event, std::vector< widget_id > const &reject_list=std::vector< widget_id >{}) noexcept
	Handle command recursive.
virtual widget_id	find_next_widget (widget_id current_keyboard_widget, keyboard_focus_group group, keyboard_focus_direction direction) const noexcept
	Find the next widget that handles keyboard focus.
widget_id	find_first_widget (keyboard_focus_group group) const noexcept
widget_id	find_last_widget (keyboard_focus_group group) const noexcept
bool	is_first (keyboard_focus_group group) const noexcept
bool	is_last (keyboard_focus_group group) const noexcept
virtual void	scroll_to_show (hi::aarectanglei rectangle) noexcept
	Scroll to show the given rectangle on the window.
std::vector< widget_id >	parent_chain () const noexcept
	Get a list of parents of a given widget.
virtual bool	is_tab_button () const noexcept
	Check if this widget is a tab-button.
template<forward_of< void()> Callback>
callback_token	subscribe (Callback &&callback, callback_flags flags=callback_flags::synchronous) const noexcept
awaiter_type	operator co_await () const noexcept

Static Public Attributes
static constexpr hi::axis	axis = Axis
static constexpr auto	prefix = Prefix

Additional Inherited Members
Data Fields inherited from hi::v1::widget
widget_id	id = {}
	The numeric identifier of a widget.
widget *	parent = nullptr
	Pointer to the parent widget.
gui_window *	window = nullptr
	The window this widget is on.
gfx_surface *	surface = nullptr
	The surface this widget is drawn on.
observer< widget_mode >	mode = widget_mode::enabled
	The widget mode.
observer< bool >	hover = false
	Mouse cursor is hovering over the widget.
observer< bool >	clicked = false
	The widget is being clicked by the mouse.
observer< bool >	focus = false
	The widget has keyboard focus.
observer< widget_state >	state = widget_state::off
	The state of the widget.
size_t	semantic_layer = 0_uz
	The draw layer of the widget.
observer< extent2i >	minimum = extent2i{}
	The minimum size this widget is allowed to be.
observer< extent2i >	maximum = extent2i::large()
	The maximum size this widget is allowed to be.
widget_layout	layout

Detailed Description

template<fixed_string Prefix, axis Axis>
class hi::v1::row_column_widget< Prefix, Axis >

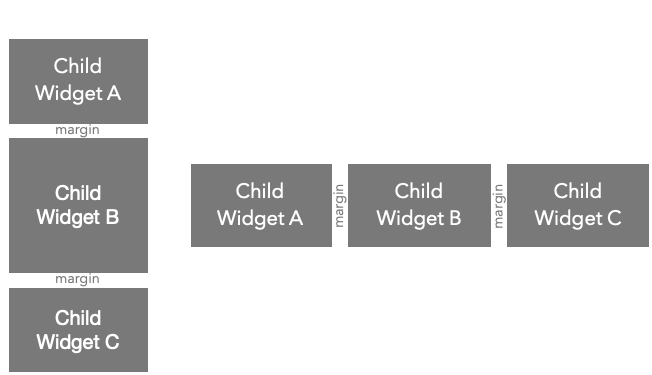

A row/column widget lays out child widgets along a row or column.

Columns are laid out from left to right, and rows from top to bottom.

The row/column widget will calculate the size of the row or column based on the minimum, preferred and maximum size of each child widget contained in them. Margins are also taken into account in the spacing between the child-widgets.

When laid out, each child is sized to where it will occupy the full width of a column, or full height of the row; and divide the length of the column or row with the other children.

Template Parameters

Axis	the axis to lay out child widgets. Either axis::horizontal or axis::vertical.

Constructor & Destructor Documentation

row_column_widget()

template<fixed_string Prefix, axis Axis>

hi::v1::row_column_widget< Prefix, Axis >::row_column_widget ( widget * parent )

inlinenoexcept

Constructs an empty row/column widget.

Parameters

parent

The parent widget.

Member Function Documentation

clear()

template<fixed_string Prefix, axis Axis>

void hi::v1::row_column_widget< Prefix, Axis >::clear ( )

inlinenoexcept

Remove and deallocate all child widgets.

make_widget()

template<fixed_string Prefix, axis Axis>

template<typename Widget , typename... Args>

Widget & hi::v1::row_column_widget< Prefix, Axis >::make_widget ( Args &&... args )

inline

Add a widget directly to this grid-widget.

In a column-widget the newly added widget is added below previously added child-widgets.

In a row-widget the newly added widget is added to the right of previously added child-widgets.

Template Parameters

Widget

The type of the widget to be constructed.

Parameters

args	The arguments passed to the constructor of the widget.

Returns

A reference to the widget that was created.

---

The documentation for this class was generated from the following file:

• hikogui/src/hikogui/widgets/row_column_widget.hpp
