#include <hikogui/widgets/widget.hpp>

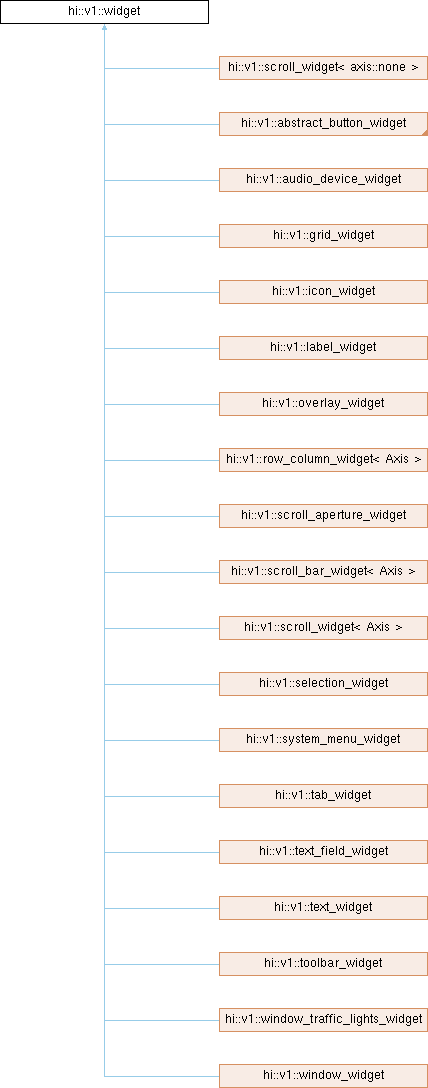

Inheritance diagram for hi::v1::widget:

Public Member Functions
	widget (widget *parent) noexcept

	widget (const widget &)=delete

widget &	operator= (const widget &)=delete

	widget (widget &&)=delete

widget &	operator= (widget &&)=delete

virtual hitbox	hitbox_test (point3 position) const noexcept
	Find the widget that is under the mouse cursor.

virtual hitbox	hitbox_test_from_parent (point3 position) const noexcept
	Call hitbox_test from a parent widget.

virtual hitbox	hitbox_test_from_parent (point3 position, hitbox sibling_hitbox) const noexcept
	Call hitbox_test from a parent widget.

virtual bool	accepts_keyboard_focus (keyboard_focus_group group) const noexcept
	Check if the widget will accept keyboard focus.

virtual widget_constraints const &	set_constraints (set_constraints_context const &context) noexcept=0
	Update the constraints of the widget.

widget_constraints const &	constraints () const noexcept

virtual void	set_layout (widget_layout const &context) noexcept=0
	Update the internal layout of the widget.

widget_layout const &	layout () const noexcept
	Get the current layout for this widget.

virtual void	draw (draw_context const &context) noexcept=0
	Draw the widget.

virtual bool	process_event (gui_event const &event) const noexcept

void	request_redraw () const noexcept
	Request the widget to be redrawn on the next frame.

virtual bool	handle_event (gui_event const &event) noexcept
	Handle command.

virtual bool	handle_event_recursive (gui_event const &event, std::vector< widget const * > const &reject_list=std::vector< widget const * >{}) noexcept
	Handle command recursive.

virtual widget const *	find_next_widget (widget const *current_keyboard_widget, keyboard_focus_group group, keyboard_focus_direction direction) const noexcept
	Find the next widget that handles keyboard focus.

widget const *	find_first_widget (keyboard_focus_group group) const noexcept

widget const *	find_last_widget (keyboard_focus_group group) const noexcept

bool	is_first (keyboard_focus_group group) const noexcept
	Is this widget the first widget in the parent container.

bool	is_last (keyboard_focus_group group) const noexcept
	Is this widget the last widget in the parent container.

virtual void	scroll_to_show (hi::aarectangle rectangle) noexcept
	Scroll to show the given rectangle on the window.

void	scroll_to_show () noexcept
	Scroll to show the important part of the widget.

std::vector< widget const * >	parent_chain () const noexcept
	Get a list of parents of a given widget.

virtual color	background_color () const noexcept

virtual color	foreground_color () const noexcept

virtual color	focus_color () const noexcept

virtual color	accent_color () const noexcept

virtual color	label_color () const noexcept

Data Fields
widget *	parent
	Pointer to the parent widget.

std::string	id
	A name of widget, should be unique between siblings.

observer< widget_mode >	mode = widget_mode::enabled
	The widget mode.

observer< bool >	hover = false
	Mouse cursor is hovering over the widget.

observer< bool >	focus = false
	The widget has keyboard focus.

int	semantic_layer
	The draw layer of the widget.

int	logical_layer
	The logical layer of the widget.

Detailed Description

An interactive graphical object as part of the user-interface.

Rendering is done in three distinct phases:

Updating Constraints: widget::set_constraints()
Updating Layout: widget::set_layout()
Drawing: widget::draw()

Constructor & Destructor Documentation

◆ widget()

hi::v1::widget::widget ( widget * parent )

noexcept

Constructor for creating sub views.

Member Function Documentation

◆ accepts_keyboard_focus()

virtual bool hi::v1::widget::accepts_keyboard_focus ( keyboard_focus_group group ) const

inlinevirtualnoexcept

Check if the widget will accept keyboard focus.

Reimplemented in hi::v1::scroll_bar_widget< Axis >.

◆ draw()

virtual void hi::v1::widget::draw ( draw_context const & context )

pure virtualnoexcept

Draw the widget.

This function is called by the window (optionally) on every frame. It should recursively call this function on every visible child. This function is only called when updateLayout() has returned true.

The overriding function should call the base class's draw(), the place where the call this function will determine the order of the vertices into each buffer. This is important when needing to do the painters algorithm for alpha-compositing. However the pipelines are always drawn in the same order.

Parameters

context The context to where the widget will draw.

Implemented in hi::v1::scroll_bar_widget< Axis >.

◆ find_next_widget()

virtual widget const * hi::v1::widget::find_next_widget	(	widget const *	current_keyboard_widget,
		keyboard_focus_group	group,
		keyboard_focus_direction	direction ) const

virtualnoexcept

Find the next widget that handles keyboard focus.

This recursively looks for the current keyboard widget, then returns the next (or previous) widget that returns true from accepts_keyboard_focus().

Parameters

current_keyboard_widget	The widget that currently has focus; or empty to get the first widget that accepts focus.
group	The group to which the widget must belong.
direction	The direction in which to walk the widget tree.

Returns: A pointer to the next widget.

Return values

currentKeyboardWidget	when currentKeyboardWidget was found but no next widget was found.
empty	when currentKeyboardWidget is not found in this Widget.

◆ handle_event()

virtual bool hi::v1::widget::handle_event ( gui_event const & event )

virtualnoexcept

Handle command.

If a widget does not fully handle a command it should pass the command to the super class' handle_event().

Reimplemented in hi::v1::scroll_bar_widget< Axis >.

◆ handle_event_recursive()

virtual bool hi::v1::widget::handle_event_recursive	(	gui_event const &	event,
		std::vector< widget const * > const &	reject_list = std::vector< widget const * >{} )

virtualnoexcept

Handle command recursive.

Handle a command and pass it to each child.

Parameters

event	The command to handle by this widget.
reject_list	The widgets that should ignore this command

Returns: True when the command was handled by this widget or recursed child.

◆ hitbox_test()

virtual hitbox hi::v1::widget::hitbox_test ( point3 position ) const

inlinevirtualnoexcept

Find the widget that is under the mouse cursor.

This function will recursively test with visual child widgets, when widgets overlap on the screen the hitbox object with the highest elevation is returned.

Parameters

position The coordinate of the mouse local to the widget.

Returns: A hit_box object with the cursor-type and a reference to the widget.

Reimplemented in hi::v1::scroll_bar_widget< Axis >.

◆ hitbox_test_from_parent() [1/2]

virtual hitbox hi::v1::widget::hitbox_test_from_parent ( point3 position ) const

inlinevirtualnoexcept

Call hitbox_test from a parent widget.

This function will transform the position from parent coordinates to local coordinates.

Parameters

position The coordinate of the mouse local to the parent widget.

◆ hitbox_test_from_parent() [2/2]

virtual hitbox hi::v1::widget::hitbox_test_from_parent	(	point3	position,
		hitbox	sibling_hitbox ) const

inlinevirtualnoexcept

Call hitbox_test from a parent widget.

This function will transform the position from parent coordinates to local coordinates.

Parameters

position	The coordinate of the mouse local to the parent widget.
sibling_hitbox	The hitbox of a sibling to combine with the hitbox of this widget.

◆ is_first()

bool hi::v1::widget::is_first ( keyboard_focus_group group ) const

noexcept

Is this widget the first widget in the parent container.

◆ is_last()

bool hi::v1::widget::is_last ( keyboard_focus_group group ) const

noexcept

Is this widget the last widget in the parent container.

◆ layout()

widget_layout const & hi::v1::widget::layout ( ) const

inlinenoexcept

Get the current layout for this widget.

◆ parent_chain()

std::vector< widget const * > hi::v1::widget::parent_chain ( ) const

noexcept

Get a list of parents of a given widget.

The chain includes the given widget.

◆ request_redraw()

void hi::v1::widget::request_redraw ( ) const

inlinenoexcept

Request the widget to be redrawn on the next frame.

◆ scroll_to_show() [1/2]

void hi::v1::widget::scroll_to_show ( )

inlinenoexcept

Scroll to show the important part of the widget.

◆ scroll_to_show() [2/2]

virtual void hi::v1::widget::scroll_to_show ( hi::aarectangle rectangle )

virtualnoexcept

Scroll to show the given rectangle on the window.

This will call parents, until all parents have scrolled the rectangle to be shown on the window.

Parameters

rectangle The rectangle in window coordinates.

◆ set_constraints()

virtual widget_constraints const & hi::v1::widget::set_constraints ( set_constraints_context const & context )

pure virtualnoexcept

Update the constraints of the widget.

Typically the implementation of this function starts with recursively calling set_constraints() on its children.

If the container, due to a change in constraints, wants the window to resize to the minimum size it should call request_resize().

Postcondition: This function will change what is returned by widget::minimum_size(), widget::preferred_size() and widget::maximum_size().

Implemented in hi::v1::scroll_bar_widget< Axis >.

◆ set_layout()

virtual void hi::v1::widget::set_layout ( widget_layout const & context )

pure virtualnoexcept

Update the internal layout of the widget.

This function is called when the size of this widget must change, or if any of the widget request a re-layout.

This function may be used for expensive calculations, such as geometry calculations, which should only be done when the data or sizes change; it should cache these calculations.

Postcondition: This function will change what is returned by widget::size() and the transformation matrices.

Parameters

layout The layout for this child.

Implemented in hi::v1::scroll_bar_widget< Axis >.

Field Documentation

◆ focus

observer<bool> hi::v1::widget::focus = false

The widget has keyboard focus.

◆ hover

observer<bool> hi::v1::widget::hover = false

Mouse cursor is hovering over the widget.

◆ id

std::string hi::v1::widget::id

A name of widget, should be unique between siblings.

◆ logical_layer

int hi::v1::widget::logical_layer

The logical layer of the widget.

The logical layer can be used to determine how far away from the window-widget (root) the current widget is.

Logical layers start at 0 for the window-widget. Each child widget increases the logical layer by 1.

◆ mode

observer<widget_mode> hi::v1::widget::mode = widget_mode::enabled

The widget mode.

The current visibility and interactivity of a widget.

◆ parent

widget* hi::v1::widget::parent

Pointer to the parent widget.

May be a nullptr only when this is the top level widget.

◆ semantic_layer

int hi::v1::widget::semantic_layer

The draw layer of the widget.

The semantic layer is used mostly by the draw() function for selecting colors from the theme, to denote nesting widgets inside other widgets.

Semantic layers start at 0 for the window-widget and for any pop-up widgets.

The semantic layer is increased by one, whenever a user of the user-interface would understand the next layer to begin.

In most cases it would mean that a container widget that does not draw itself will not increase the semantic_layer number.

The documentation for this class was generated from the following file:

hikogui/src/hikogui/widgets/widget.hpp
