#include <hikogui/widgets/toolbar_button_widget.hpp>

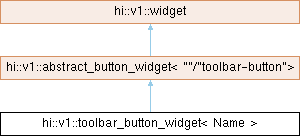

Inheritance diagram for hi::v1::toolbar_button_widget< Name >:
Public Types | |
| using | super = abstract_button_widget<Name / "toolbar-button"> |
| using | delegate_type = typename super::delegate_type |
 Public Types inherited from hi::v1::abstract_button_widget< Prefix > | |
| using | super = widget |
| using | delegate_type = button_delegate |
| Public Types inherited from hi::v1::widget | |
| using | callback_token = notifier<void()>::callback_token |
| using | awaiter_type = notifier<void()>::awaiter_type |
Public Member Functions | |
| toolbar_button_widget (widget *parent, std::shared_ptr< delegate_type > delegate, button_widget_attribute auto &&...attributes) noexcept | |
| toolbar_button_widget (widget *parent, button_widget_attribute auto &&...attributes) noexcept | |
| Public Member Functions inherited from hi::v1::abstract_button_widget< Prefix > | |
| abstract_button_widget (widget *parent, std::shared_ptr< delegate_type > delegate) noexcept | |
| Public Member Functions inherited from hi::v1::widget | |
| widget (widget *parent) noexcept | |
| widget (widget const &)=delete | |
| widget (widget &&)=delete | |
| widget & | operator= (widget &&)=delete |
| widget & | operator= (widget const &)=delete |
| generator< widget & > | children (bool include_invisible) noexcept |
| virtual hitbox | hitbox_test_from_parent (point2 position) const noexcept |
| Call hitbox_test from a parent widget. | |
| virtual hitbox | hitbox_test_from_parent (point2 position, hitbox sibling_hitbox) const noexcept |
| Call hitbox_test from a parent widget. | |
| void | reset_layout (gfx_surface *new_surface, float new_scale) noexcept |
| Reset the layout. | |
| virtual void | layout () noexcept |
| virtual sub_theme_selector_type | sub_theme_selector () const noexcept |
| virtual bool | process_event (gui_event const &event) const noexcept |
| virtual void | request_redraw () const noexcept |
| Request the widget to be redrawn on the next frame. | |
| virtual bool | handle_event_recursive (gui_event const &event, std::vector< widget_id > const &reject_list=std::vector< widget_id >{}) noexcept |
| Handle command recursive. | |
| virtual widget_id | find_next_widget (widget_id current_keyboard_widget, keyboard_focus_group group, keyboard_focus_direction direction) const noexcept |
| Find the next widget that handles keyboard focus. | |
| widget_id | find_first_widget (keyboard_focus_group group) const noexcept |
| widget_id | find_last_widget (keyboard_focus_group group) const noexcept |
| bool | is_first (keyboard_focus_group group) const noexcept |
| bool | is_last (keyboard_focus_group group) const noexcept |
| virtual void | scroll_to_show (hi::aarectangle rectangle) noexcept |
| Scroll to show the given rectangle on the window. | |
| std::vector< widget_id > | parent_chain () const noexcept |
| Get a list of parents of a given widget. | |
| virtual bool | is_tab_button () const noexcept |
| Check if this widget is a tab-button. | |
| template<forward_of< void()> Callback> | |
| callback_token | subscribe (Callback &&callback, callback_flags flags=callback_flags::synchronous) const noexcept |
| awaiter_type | operator co_await () const noexcept |
Static Public Attributes | |
| static constexpr auto | prefix = super::prefix |
| Static Public Attributes inherited from hi::v1::abstract_button_widget< Prefix > | |
| static constexpr auto | prefix = Prefix |
Additional Inherited Members | |
| Data Fields inherited from hi::v1::abstract_button_widget< Prefix > | |
| std::shared_ptr< delegate_type > | delegate |
| The delegate that controls the button widget. | |
| observer< label > | on_label = tr("on") |
| The label to show when the button is in the 'on' state. | |
| observer< label > | off_label = tr("off") |
| The label to show when the button is in the 'off' state. | |
| observer< label > | other_label = tr("other") |
| The label to show when the button is in the 'other' state. | |
| observer< hi::alignment > | alignment |
| The alignment of the button and on/off/other label. | |
| Data Fields inherited from hi::v1::widget | |
| widget_id | id = {} |
| The numeric identifier of a widget. | |
| widget * | parent = nullptr |
| Pointer to the parent widget. | |
| gfx_surface * | surface = nullptr |
| The surface this widget is drawn on. | |
| observer< widget_mode > | mode = widget_mode::enabled |
| The widget mode. | |
| observer< bool > | hover = false |
| Mouse cursor is hovering over the widget. | |
| observer< bool > | clicked = false |
| The widget is being clicked by the mouse. | |
| observer< bool > | focus = false |
| The widget has keyboard focus. | |
| observer< widget_state > | state = widget_state::off |
| The state of the widget. | |
| size_t | semantic_layer = 0_uz |
| The draw layer of the widget. | |
| grid_cell | cell |
Detailed Description
template<fixed_string Name = "">
class hi::v1::toolbar_button_widget< Name >
class hi::v1::toolbar_button_widget< Name >
A momentary button used as a child in the toolbar.
The documentation for this class was generated from the following file:
- hikogui/src/hikogui/widgets/toolbar_button_widget.hpp
