#include <ttauri/GUI/gui_window.hpp>

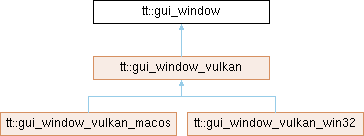

Inheritance diagram for tt::gui_window:

Public Member Functions
	gui_window (gui_system &system, std::weak_ptr< gui_window_delegate > const &delegate, label const &title)

	gui_window (gui_window const &)=delete

gui_window &	operator= (gui_window const &)=delete

	gui_window (gui_window &&)=delete

gui_window &	operator= (gui_window &&)=delete

virtual void	init ()
	2 phase constructor.

void	request_redraw (aarectangle rectangle) noexcept
	Request a rectangle on the window to be redrawn.

void	request_redraw () noexcept
	Request a rectangle on the window to be redrawn.

float	fontScale () const noexcept
	By how much the font needs to be scaled compared to current windowScale.

void	set_device (gui_device *device)

void	unset_device ()

gui_device *	device () const noexcept

virtual void	render (hires_utc_clock::time_point displayTimePoint)=0
	Update window.

bool	is_closed ()
	Check if the window was closed by the operating system.

template<typename T , typename... Args>
std::shared_ptr< T >	make_widget (size_t column_nr, size_t row_nr, Args &&...args)
	Add a widget to main widget of the window.

template<typename T , typename... Args>
std::shared_ptr< T >	make_widget (std::string_view address, Args &&...args)
	Add a widget to main widget of the window.

template<typename T , horizontal_alignment Alignment = horizontal_alignment::left, typename... Args>
std::shared_ptr< T >	make_toolbar_widget (Args &&...args)
	Add a widget to main widget of the window.

virtual void	set_cursor (mouse_cursor cursor)=0
	Set the mouse cursor icon.

void	set_resize_border_priority (bool left, bool right, bool bottom, bool top) noexcept

virtual void	close_window ()=0
	Ask the operating system to close this window.

virtual void	minimize_window ()=0
	Ask the operating system to minimize this window.

virtual void	maximize_window ()=0
	Ask the operating system to maximize this window.

virtual void	normalize_window ()=0
	Ask the operating system to normalize this window.

virtual void	set_window_size (extent2 extent)=0
	Ask the operating system to set the size of this window.

virtual std::string	get_text_from_clipboard () const noexcept=0
	Retrieve a text string from the operating system's clip-board.

virtual void	set_text_on_clipboard (std::string str) noexcept=0
	Place a text string on the operating system's clip-board.

void	update_mouse_target (std::shared_ptr< tt::widget > new_target_widget, point2 position={}) noexcept

void	update_keyboard_target (std::shared_ptr< tt::widget > widget, keyboard_focus_group group=keyboard_focus_group::normal) noexcept
	Change the keyboard focus to the given widget.

void	update_keyboard_target (std::shared_ptr< tt::widget > const &widget, keyboard_focus_group group, keyboard_focus_direction direction) noexcept
	Change the keyboard focus to the given, previous or next widget.

virtual extent2	virtual_screen_size () const noexcept=0
	Get the size of the virtual-screen.

translate2	window_to_screen () const noexcept

translate2	screen_to_window () const noexcept

Data Fields
gui_system &	system

gui_window_state	state = gui_window_state::no_device

mouse_cursor	currentmouse_cursor = mouse_cursor::None
	The current cursor.

std::atomic< bool >	requestLayout = true
	When set to true the widgets will be layed out.

std::atomic< bool >	requestResize = true
	When set to true the window will resize to the size of the contained widget.

std::atomic< bool >	resizing = false

std::atomic< bool >	active = false

gui_window_size	size_state = gui_window_size::normal

extent2	extent
	The current window extent as set by the GPU library.

std::weak_ptr< gui_window_delegate >	delegate

label	title

subpixel_orientation	subpixel_orientation = subpixel_orientation::BlueRight

float	dpi = 72.0

std::shared_ptr< window_widget >	widget
	The widget covering the complete window.

Detailed Description

A Window. This Window is backed by a native operating system window with a Vulkan surface. The Window should not have any decorations, which are to be drawn by the GUI, because modern design requires drawing of user interface elements in the border.

Member Function Documentation

◆ close_window()

virtual void tt::gui_window::close_window ( )

pure virtual

Ask the operating system to close this window.

Implemented in tt::gui_window_vulkan_macos, and tt::gui_window_vulkan_win32.

◆ fontScale()

float tt::gui_window::fontScale ( ) const

inlinenoexcept

By how much the font needs to be scaled compared to current windowScale.

Widgets should pass this value to the text-shaper.

◆ get_text_from_clipboard()

virtual std::string tt::gui_window::get_text_from_clipboard ( ) const

pure virtualnoexcept

Retrieve a text string from the operating system's clip-board.

Implemented in tt::gui_window_vulkan_macos, and tt::gui_window_vulkan_win32.

◆ init()

virtual void tt::gui_window::init ( )

virtual

2 phase constructor.

Must be called directly after the constructor on the same thread, before another thread can send messages to the window.

init() should not take locks on window::mutex.

Reimplemented in tt::gui_window_vulkan.

◆ is_closed()

bool tt::gui_window::is_closed ( )

Check if the window was closed by the operating system.

◆ make_toolbar_widget()

template<typename T , horizontal_alignment Alignment, typename... Args>

std::shared_ptr< T > tt::gui_window::make_toolbar_widget ( Args &&... args )

Add a widget to main widget of the window.

Add a widget to the toolbar of the window.

The implementation is in widgets.hpp

The implementation is located here so that widget is a concrete type.

◆ make_widget() [1/2]

template<typename T , typename... Args>

std::shared_ptr< T > tt::gui_window::make_widget	(	size_t	column_nr,
		size_t	row_nr,
		Args &&...	args )

Add a widget to main widget of the window.

Add a widget to the main widget of the window.

The implementation is in widgets.hpp

The implementation is located here so that widget is a concrete type.

◆ make_widget() [2/2]

template<typename T , typename... Args>

std::shared_ptr< T > tt::gui_window::make_widget	(	std::string_view	address,
		Args &&...	args )

Add a widget to main widget of the window.

Add a widget to the main widget of the window.

The implementation is in widgets.hpp

The implementation is located here so that widget is a concrete type.

◆ maximize_window()

virtual void tt::gui_window::maximize_window ( )

pure virtual

Ask the operating system to maximize this window.

Implemented in tt::gui_window_vulkan_macos, and tt::gui_window_vulkan_win32.

◆ minimize_window()

virtual void tt::gui_window::minimize_window ( )

pure virtual

Ask the operating system to minimize this window.

Implemented in tt::gui_window_vulkan_macos, and tt::gui_window_vulkan_win32.

◆ normalize_window()

virtual void tt::gui_window::normalize_window ( )

pure virtual

Ask the operating system to normalize this window.

Implemented in tt::gui_window_vulkan_macos, and tt::gui_window_vulkan_win32.

◆ render()

virtual void tt::gui_window::render ( hires_utc_clock::time_point displayTimePoint )

pure virtual

Update window.

This will update animations and redraw all widgets managed by this window.

Implemented in tt::gui_window_vulkan.

◆ request_redraw() [1/2]

void tt::gui_window::request_redraw ( )

inlinenoexcept

Request a rectangle on the window to be redrawn.

◆ request_redraw() [2/2]

void tt::gui_window::request_redraw ( aarectangle rectangle )

inlinenoexcept

Request a rectangle on the window to be redrawn.

◆ set_cursor()

virtual void tt::gui_window::set_cursor ( mouse_cursor cursor )

pure virtual

Set the mouse cursor icon.

Implemented in tt::gui_window_vulkan_macos, and tt::gui_window_vulkan_win32.

◆ set_device()

void tt::gui_window::set_device ( gui_device * device )

Set GPU device to manage this window. Change of the device may be done at runtime.

◆ set_text_on_clipboard()

virtual void tt::gui_window::set_text_on_clipboard ( std::string str )

pure virtualnoexcept

Place a text string on the operating system's clip-board.

Implemented in tt::gui_window_vulkan_macos, and tt::gui_window_vulkan_win32.

◆ set_window_size()

virtual void tt::gui_window::set_window_size ( extent2 extent )

pure virtual

Ask the operating system to set the size of this window.

Implemented in tt::gui_window_vulkan_win32.

◆ unset_device()

void tt::gui_window::unset_device ( )

inline

Remove the GPU device from the window, making it an orphan.

◆ update_keyboard_target() [1/2]

void tt::gui_window::update_keyboard_target	(	std::shared_ptr< tt::widget > const &	widget,
		keyboard_focus_group	group,
		keyboard_focus_direction	direction )

noexcept

Change the keyboard focus to the given, previous or next widget.

This function will find the closest widget from the given widget wich belong to the given group; if none is found, or if the original selected widget is found, then no widget will be in focus.

Parameters

widget	The widget to use as the start point for a new widget to select.
group	The group the widget must belong to.
direction	The direction to search in, or current to select the current widget.

◆ update_keyboard_target() [2/2]

void tt::gui_window::update_keyboard_target	(	std::shared_ptr< tt::widget >	widget,
		keyboard_focus_group	group = keyboard_focus_group::normal )

noexcept

Change the keyboard focus to the given widget.

If the group of the widget is incorrect then no widget will be in focus.

Parameters

widget	The new widget to focus, or empty to remove all keyboard focus.
group	The group the widget must belong to.

◆ virtual_screen_size()

virtual extent2 tt::gui_window::virtual_screen_size ( ) const

pure virtualnoexcept

Get the size of the virtual-screen.

Each window may be on a different virtual screen with different sizes, so retrieve it on a per window basis.

Implemented in tt::gui_window_vulkan_win32.

Field Documentation

◆ active

std::atomic<bool> tt::gui_window::active = false

The window is currently active. Widgets may want to reduce redraws, or change colors.

◆ currentmouse_cursor

mouse_cursor tt::gui_window::currentmouse_cursor = mouse_cursor::None

The current cursor.

Used for optimizing when the operating system cursor is updated. Set to mouse_cursor::None at the start (for the wait icon) and when the operating system is going to display another icon to make sure when it comes back in the application the cursor will be updated correctly.

◆ dpi

float tt::gui_window::dpi = 72.0

Dots-per-inch of the screen where the window is located. If the window is located on multiple screens then one of the screens is used as the source for the DPI value.

◆ extent

extent2 tt::gui_window::extent

The current window extent as set by the GPU library.

◆ requestLayout

std::atomic<bool> tt::gui_window::requestLayout = true

When set to true the widgets will be layed out.

◆ requestResize

std::atomic<bool> tt::gui_window::requestResize = true

When set to true the window will resize to the size of the contained widget.

◆ resizing

std::atomic<bool> tt::gui_window::resizing = false

The window is currently being resized by the user. We can disable expensive redraws during rendering until this is false again.

◆ size_state

gui_window_size tt::gui_window::size_state = gui_window_size::normal

Current size state of the window.

◆ subpixel_orientation

subpixel_orientation tt::gui_window::subpixel_orientation = subpixel_orientation::BlueRight

Orientation of the RGB subpixels.

◆ widget

std::shared_ptr<window_widget> tt::gui_window::widget

The widget covering the complete window.

The documentation for this class was generated from the following files:

hikogui/src/ttauri/GUI/gui_window.hpp
hikogui/src/ttauri/widgets/widgets.hpp

Public Member Functions

Data Fields

Detailed Description

Member Function Documentation

◆ close_window()

◆ fontScale()

◆ get_text_from_clipboard()

◆ init()

◆ is_closed()

◆ make_toolbar_widget()

◆ make_widget() [1/2]

◆ make_widget() [2/2]

◆ maximize_window()

◆ minimize_window()

◆ normalize_window()

◆ render()

◆ request_redraw() [1/2]

◆ request_redraw() [2/2]

◆ set_cursor()

◆ set_device()

◆ set_text_on_clipboard()

◆ set_window_size()

◆ unset_device()

◆ update_keyboard_target() [1/2]

◆ update_keyboard_target() [2/2]

◆ virtual_screen_size()

Field Documentation

◆ active

◆ currentmouse_cursor

◆ dpi

◆ extent

◆ requestLayout

◆ requestResize

◆ resizing

◆ size_state

◆ subpixel_orientation

◆ widget
