tt::gui_window_vulkan Class Reference

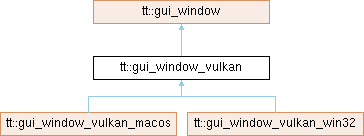

Inheritance diagram for tt::gui_window_vulkan:

Public Member Functions
	gui_window_vulkan (gui_system &system, std::weak_ptr< gui_window_delegate > const &delegate, label const &title)
	gui_window_vulkan (const gui_window_vulkan &)=delete
gui_window_vulkan &	operator= (const gui_window_vulkan &)=delete
	gui_window_vulkan (gui_window_vulkan &&)=delete
gui_window_vulkan &	operator= (gui_window_vulkan &&)=delete
void	init () override
	2 phase constructor.
gui_device_vulkan &	vulkan_device () const noexcept
void	render (hires_utc_clock::time_point displayTimePoint) override
	Update window.
virtual vk::SurfaceKHR	getSurface () const =0
Public Member Functions inherited from tt::gui_window
	gui_window (gui_system &system, std::weak_ptr< gui_window_delegate > const &delegate, label const &title)
	gui_window (gui_window const &)=delete
gui_window &	operator= (gui_window const &)=delete
	gui_window (gui_window &&)=delete
gui_window &	operator= (gui_window &&)=delete
void	request_redraw (aarectangle rectangle) noexcept
	Request a rectangle on the window to be redrawn.
void	request_redraw () noexcept
	Request a rectangle on the window to be redrawn.
float	fontScale () const noexcept
	By how much the font needs to be scaled compared to current windowScale.
void	set_device (gui_device *device)
void	unset_device ()
gui_device *	device () const noexcept
bool	is_closed ()
	Check if the window was closed by the operating system.
template<typename T , typename... Args>
std::shared_ptr< T >	make_widget (size_t column_nr, size_t row_nr, Args &&...args)
	Add a widget to main widget of the window.
template<typename T , typename... Args>
std::shared_ptr< T >	make_widget (std::string_view address, Args &&...args)
	Add a widget to main widget of the window.
template<typename T , horizontal_alignment Alignment = horizontal_alignment::left, typename... Args>
std::shared_ptr< T >	make_toolbar_widget (Args &&...args)
	Add a widget to main widget of the window.
virtual void	set_cursor (mouse_cursor cursor)=0
	Set the mouse cursor icon.
void	set_resize_border_priority (bool left, bool right, bool bottom, bool top) noexcept
virtual void	close_window ()=0
	Ask the operating system to close this window.
virtual void	minimize_window ()=0
	Ask the operating system to minimize this window.
virtual void	maximize_window ()=0
	Ask the operating system to maximize this window.
virtual void	normalize_window ()=0
	Ask the operating system to normalize this window.
virtual void	set_window_size (extent2 extent)=0
	Ask the operating system to set the size of this window.
virtual std::string	get_text_from_clipboard () const noexcept=0
	Retrieve a text string from the operating system's clip-board.
virtual void	set_text_on_clipboard (std::string str) noexcept=0
	Place a text string on the operating system's clip-board.
void	update_mouse_target (std::shared_ptr< tt::widget > new_target_widget, point2 position={}) noexcept
void	update_keyboard_target (std::shared_ptr< tt::widget > widget, keyboard_focus_group group=keyboard_focus_group::normal) noexcept
	Change the keyboard focus to the given widget.
void	update_keyboard_target (std::shared_ptr< tt::widget > const &widget, keyboard_focus_group group, keyboard_focus_direction direction) noexcept
	Change the keyboard focus to the given, previous or next widget.
virtual extent2	virtual_screen_size () const noexcept=0
	Get the size of the virtual-screen.
translate2	window_to_screen () const noexcept
translate2	screen_to_window () const noexcept

Data Fields
vk::SurfaceKHR	intrinsic
vk::SwapchainKHR	swapchain
int	nrSwapchainImages
vk::Extent2D	swapchainImageExtent
vk::SurfaceFormatKHR	swapchainImageFormat
std::vector< swapchain_image_info >	swapchain_image_infos
VmaAllocation	depthImageAllocation
vk::Image	depthImage
vk::ImageView	depthImageView
std::array< VmaAllocation, 2 >	colorImageAllocations
std::array< vk::Image, 2 >	colorImages
std::array< vk::ImageView, 2 >	colorImageViews
std::array< vk::DescriptorImageInfo, 2 >	colorDescriptorImageInfos
vk::RenderPass	renderPass
vk::CommandBuffer	commandBuffer
vk::Semaphore	imageAvailableSemaphore
vk::Semaphore	renderFinishedSemaphore
vk::Fence	renderFinishedFence
std::unique_ptr< pipeline_image::pipeline_image >	imagePipeline
std::unique_ptr< pipeline_flat::pipeline_flat >	flatPipeline
std::unique_ptr< pipeline_box::pipeline_box >	boxPipeline
std::unique_ptr< pipeline_SDF::pipeline_SDF >	SDFPipeline
std::unique_ptr< pipeline_tone_mapper::pipeline_tone_mapper >	toneMapperPipeline
Data Fields inherited from tt::gui_window
gui_system &	system
gui_window_state	state = gui_window_state::no_device
mouse_cursor	currentmouse_cursor = mouse_cursor::None
	The current cursor.
std::atomic< bool >	requestLayout = true
	When set to true the widgets will be layed out.
std::atomic< bool >	requestResize = true
	When set to true the window will resize to the size of the contained widget.
std::atomic< bool >	resizing = false
std::atomic< bool >	active = false
gui_window_size	size_state = gui_window_size::normal
extent2	extent
	The current window extent as set by the GPU library.
std::weak_ptr< gui_window_delegate >	delegate
label	title
subpixel_orientation	subpixel_orientation = subpixel_orientation::BlueRight
float	dpi = 72.0
std::shared_ptr< window_widget >	widget
	The widget covering the complete window.

Static Public Attributes
static constexpr uint32_t	defaultNumberOfSwapchainImages = 2
static const vk::Format	depthImageFormat = vk::Format::eD32Sfloat
static const vk::Format	colorImageFormat = vk::Format::eR16G16B16A16Sfloat

Member Function Documentation

getSurface()

virtual vk::SurfaceKHR tt::gui_window_vulkan::getSurface ( ) const

pure virtual

Query the surface from the operating-system window.

Implemented in tt::gui_window_vulkan_macos, and tt::gui_window_vulkan_win32.

init()

void tt::gui_window_vulkan::init ( )

overridevirtual

2 phase constructor.

Must be called directly after the constructor on the same thread, before another thread can send messages to the window.

init() should not take locks on window::mutex.

Reimplemented from tt::gui_window.

render()

void tt::gui_window_vulkan::render ( hires_utc_clock::time_point displayTimePoint )

overridevirtual

Update window.

This will update animations and redraw all widgets managed by this window.

Implements tt::gui_window.

---

The documentation for this class was generated from the following file:

• hikogui/src/ttauri/GUI/gui_window_vulkan.hpp
