#include <hikogui/widgets/vulkan_widget.hpp>

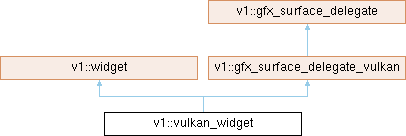

Inheritance diagram for v1::vulkan_widget:

Public Types
using	super = widget

Public Member Functions
	vulkan_widget (hi::gui_window &window, hi::widget *parent) noexcept

widget_constraints const &	set_constraints () noexcept override
	Update the constraints of the widget.

void	set_layout (hi::widget_layout const &layout) noexcept override

void	draw (hi::draw_context const &context) noexcept override

Public Member Functions inherited from v1::widget
	widget (gui_window &window, widget *parent) noexcept

	widget (const widget &)=delete

widget &	operator= (const widget &)=delete

	widget (widget &&)=delete

widget &	operator= (widget &&)=delete

bool	is_gui_thread () const noexcept

hi::theme const &	theme () const noexcept
	Get the theme.

hi::font_book &	font_book () const noexcept
	Get the font book.

virtual hitbox	hitbox_test (point3 position) const noexcept
	Find the widget that is under the mouse cursor.

virtual hitbox	hitbox_test_from_parent (point3 position) const noexcept
	Call hitbox_test from a parent widget.

virtual hitbox	hitbox_test_from_parent (point3 position, hitbox sibling_hitbox) const noexcept
	Call hitbox_test from a parent widget.

virtual bool	accepts_keyboard_focus (keyboard_focus_group group) const noexcept
	Check if the widget will accept keyboard focus.

widget_constraints const &	constraints () const noexcept

virtual void	set_layout (widget_layout const &layout) noexcept=0
	Update the internal layout of the widget.

widget_layout const &	layout () const noexcept
	Get the current layout for this widget.

virtual void	draw (draw_context const &context) noexcept=0
	Draw the widget.

virtual void	request_redraw () const noexcept
	Request the widget to be redrawn on the next frame.

void	request_relayout () const noexcept
	Request the window to be relayout on the next frame.

void	request_reconstrain () const noexcept
	Request the window to be reconstrain on the next frame.

void	request_resize () const noexcept
	Request the window to be resize based on the preferred size of the widgets.

virtual bool	handle_event (gui_event const &event) noexcept
	Handle command.

virtual bool	handle_event_recursive (gui_event const &event, std::vector< widget const * > const &reject_list=std::vector< widget const * >{}) noexcept
	Handle command recursive.

virtual widget const *	find_next_widget (widget const *current_keyboard_widget, keyboard_focus_group group, keyboard_focus_direction direction) const noexcept
	Find the next widget that handles keyboard focus.

widget const *	find_first_widget (keyboard_focus_group group) const noexcept

widget const *	find_last_widget (keyboard_focus_group group) const noexcept

bool	is_first (keyboard_focus_group group) const noexcept
	Is this widget the first widget in the parent container.

bool	is_last (keyboard_focus_group group) const noexcept
	Is this widget the last widget in the parent container.

virtual void	scroll_to_show (hi::aarectangle rectangle) noexcept
	Scroll to show the given rectangle on the window.

void	scroll_to_show () noexcept
	Scroll to show the important part of the widget.

std::vector< widget const * >	parent_chain () const noexcept
	Get a list of parents of a given widget.

virtual color	background_color () const noexcept

virtual color	foreground_color () const noexcept

virtual color	focus_color () const noexcept

virtual color	accent_color () const noexcept

virtual color	label_color () const noexcept

Public Member Functions inherited from v1::gfx_surface_delegate_vulkan
virtual void	build_for_new_device (VmaAllocator allocator, vk::Instance instance, vk::Device device, vk::Queue graphics_queue) noexcept=0
	The vulkan device has been initialized.

virtual void	build_for_new_swapchain (std::vector< vk::ImageView > const &views, vk::Extent2D size, vk::SurfaceFormatKHR format) noexcept=0
	The swap-chain has been build.

virtual void	draw (uint32_t swapchain_index, vk::Rect2D render_area, vk::Semaphore start, vk::Semaphore finish) noexcept=0
	Draw using vulkan API.

Public Member Functions inherited from v1::gfx_surface_delegate
	gfx_surface_delegate (gfx_surface_delegate const &)=delete

	gfx_surface_delegate (gfx_surface_delegate &&)=delete

gfx_surface_delegate &	operator= (gfx_surface_delegate const &)=delete

gfx_surface_delegate &	operator= (gfx_surface_delegate &&)=delete

virtual void	teardown_for_swapchain_lost () noexcept
	The swap-chain is going to be teared-down.

virtual void	teardown_for_device_lost () noexcept
	The vulkan device is going to be teared-down.

virtual void	teardown_for_window_lost () noexcept

Additional Inherited Members
Data Fields inherited from v1::widget
gui_window &	window
	Convenient reference to the Window.

widget *const	parent
	Pointer to the parent widget.

std::string	id
	A name of widget, should be unique between siblings.

observable< widget_mode >	mode = widget_mode::enabled
	The widget mode.

observable< bool >	hover = false
	Mouse cursor is hovering over the widget.

observable< bool >	focus = false
	The widget has keyboard focus.

int	semantic_layer
	The draw layer of the widget.

int	logical_layer
	The logical layer of the widget.

Detailed Description

A widget that draws directly into the swap-chain.

Member Function Documentation

◆ set_constraints()

widget_constraints const & v1::vulkan_widget::set_constraints ( )

inlineoverridevirtualnoexcept

Update the constraints of the widget.

Typically the implementation of this function starts with recursively calling set_constraints() on its children.

If the container, due to a change in constraints, wants the window to resize to the minimum size it should call request_resize().

Postcondition: This function will change what is returned by widget::minimum_size(), widget::preferred_size() and widget::maximum_size().

Implements v1::widget.

The documentation for this class was generated from the following file:

hikogui/src/hikogui/widgets/vulkan_widget.hpp
