hi::v1::abstract_button_widget Class Reference

#include <hikogui/widgets/abstract_button_widget.hpp>

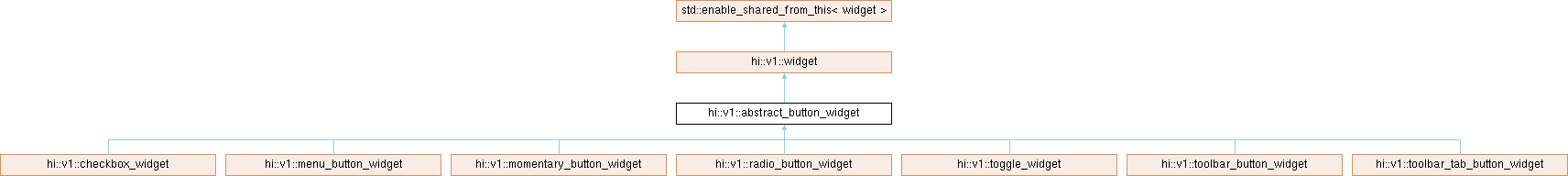

Inheritance diagram for hi::v1::abstract_button_widget:

Public Types
using	super = widget
using	delegate_type = button_delegate

Public Member Functions
	abstract_button_widget (widget *parent, std::shared_ptr< delegate_type > delegate) noexcept
button_state	state () const noexcept
	Get the current state of the button.
Public Member Functions inherited from hi::v1::widget
	widget (widget *parent) noexcept
	widget (const widget &)=delete
widget &	operator= (const widget &)=delete
	widget (widget &&)=delete
widget &	operator= (widget &&)=delete
generator< widget & >	children (bool include_invisible) noexcept
virtual hitbox	hitbox_test_from_parent (point2i position) const noexcept
	Call hitbox_test from a parent widget.
virtual hitbox	hitbox_test_from_parent (point2i position, hitbox sibling_hitbox) const noexcept
	Call hitbox_test from a parent widget.
widget_layout const &	layout () const noexcept
	Get the current layout for this widget.
virtual void	draw (draw_context const &context) noexcept
	Draw the widget.
virtual bool	process_event (gui_event const &event) const noexcept
virtual void	request_redraw () const noexcept
	Request the widget to be redrawn on the next frame.
virtual bool	handle_event_recursive (gui_event const &event, std::vector< widget_id > const &reject_list=std::vector< widget_id >{}) noexcept
	Handle command recursive.
virtual widget_id	find_next_widget (widget_id current_keyboard_widget, keyboard_focus_group group, keyboard_focus_direction direction) const noexcept
	Find the next widget that handles keyboard focus.
widget_id	find_first_widget (keyboard_focus_group group) const noexcept
widget_id	find_last_widget (keyboard_focus_group group) const noexcept
bool	is_first (keyboard_focus_group group) const noexcept
	Is this widget the first widget in the parent container.
bool	is_last (keyboard_focus_group group) const noexcept
	Is this widget the last widget in the parent container.
virtual void	scroll_to_show (hi::aarectanglei rectangle) noexcept
	Scroll to show the given rectangle on the window.
void	scroll_to_show () noexcept
	Scroll to show the important part of the widget.
std::vector< widget_id >	parent_chain () const noexcept
	Get a list of parents of a given widget.
virtual gui_window *	window () const noexcept
virtual hi::theme const &	theme () const noexcept
virtual gfx_surface const *	surface () const noexcept
virtual color	foreground_color () const noexcept
virtual color	focus_color () const noexcept
virtual color	accent_color () const noexcept
virtual color	label_color () const noexcept
Public Member Functions inherited from std::enable_shared_from_this< widget >
T	enable_shared_from_this (T... args)
T	operator= (T... args)
T	shared_from_this (T... args)
T	~enable_shared_from_this (T... args)

Data Fields
std::shared_ptr< delegate_type >	delegate
	The delegate that controls the button widget.
observer< label >	on_label = tr("on")
	The label to show when the button is in the 'on' state.
observer< label >	off_label = tr("off")
	The label to show when the button is in the 'off' state.
observer< label >	other_label = tr("other")
	The label to show when the button is in the 'other' state.
observer< alignment >	alignment
	The alignment of the button and on/off/other label.
observer< semantic_text_style >	text_style = semantic_text_style::label
	The text style to button's label.
notifier< void()>	pressed
Data Fields inherited from hi::v1::widget
widget *	parent = nullptr
	Pointer to the parent widget.
widget_id	id = {}
	The numeric identifier of a widget.
observer< widget_mode >	mode = widget_mode::enabled
	The widget mode.
observer< bool >	hover = false
	Mouse cursor is hovering over the widget.
observer< bool >	focus = false
	The widget has keyboard focus.
int	semantic_layer = 0
	The draw layer of the widget.
int	logical_layer = 0
	The logical layer of the widget.
observer< extent2i >	minimum = extent2i{}
	The minimum size this widget is allowed to be.
observer< extent2i >	maximum = extent2i::large()
	The maximum size this widget is allowed to be.

Detailed Description

Base class for implementing button widgets.

Member Function Documentation

state()

button_state hi::v1::abstract_button_widget::state ( ) const

inlinenoexcept

Get the current state of the button.

Returns

The state of the button: on / off / other.

Field Documentation

alignment

observer<alignment> hi::v1::abstract_button_widget::alignment

The alignment of the button and on/off/other label.

delegate

std::shared_ptr<delegate_type> hi::v1::abstract_button_widget::delegate

The delegate that controls the button widget.

off_label

observer<label> hi::v1::abstract_button_widget::off_label = tr("off")

The label to show when the button is in the 'off' state.

on_label

observer<label> hi::v1::abstract_button_widget::on_label = tr("on")

The label to show when the button is in the 'on' state.

other_label

observer<label> hi::v1::abstract_button_widget::other_label = tr("other")

The label to show when the button is in the 'other' state.

text_style

observer<semantic_text_style> hi::v1::abstract_button_widget::text_style = semantic_text_style::label

The text style to button's label.

---

The documentation for this class was generated from the following file:

• hikogui/src/hikogui/widgets/abstract_button_widget.hpp
