#include <TTauri/GUI/Window_base.hpp>

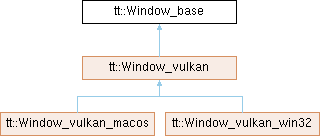

Inheritance diagram for tt::Window_base:

Public Types
enum class	State { Initializing , NoWindow , NoDevice , NoSurface , NoSwapchain , ReadyToRender , SwapchainLost , SurfaceLost , DeviceLost , WindowLost }

enum class	Size { Normal , Minimized , Maximized }

Public Member Functions
float	fontScale () const noexcept
	By how much the font needs to be scaled compared to current windowScale.

	Window_base (std::shared_ptr< WindowDelegate > const &delegate, Label &&title)

	Window_base (Window_base const &)=delete

Window_base &	operator= (Window_base const &)=delete

	Window_base (Window_base &&)=delete

Window_base &	operator= (Window_base &&)=delete

virtual void	initialize ()

void	setDevice (GUIDevice *device)

void	unsetDevice ()

void	layout (hires_utc_clock::time_point displayTimePoint)

int	layoutChildren (hires_utc_clock::time_point displayTimePoint, bool force)
	Layout the widgets in the window.

virtual void	render (hires_utc_clock::time_point displayTimePoint)=0

bool	isClosed ()

template<typename T , typename... Args>
T &	makeWidget (Args &&... args)
	Add a widget to main widget of the window.

rhea::constraint	addConstraint (rhea::constraint const &constraint) noexcept

rhea::constraint	addConstraint (rhea::linear_equation const &equation, rhea::strength const &strength=rhea::strength::required(), double weight=1.0) noexcept

rhea::constraint	addConstraint (rhea::linear_inequality const &equation, rhea::strength const &strength=rhea::strength::required(), double weight=1.0) noexcept

void	removeConstraint (rhea::constraint const &constraint) noexcept

rhea::constraint	replaceConstraint (rhea::constraint const &oldConstraint, rhea::constraint const &newConstraint) noexcept

rhea::constraint	replaceConstraint (rhea::constraint const &oldConstraint, rhea::linear_equation const &newEquation, rhea::strength const &strength=rhea::strength::required(), double weight=1.0) noexcept

rhea::constraint	replaceConstraint (rhea::constraint const &oldConstraint, rhea::linear_inequality const &newEquation, rhea::strength const &strength=rhea::strength::required(), double weight=1.0) noexcept

virtual void	setCursor (Cursor cursor)=0

virtual void	closeWindow ()=0

virtual void	minimizeWindow ()=0

virtual void	maximizeWindow ()=0

virtual void	normalizeWindow ()=0

virtual void	setWindowSize (ivec extent)=0

virtual std::string	getTextFromClipboard () const noexcept=0

virtual void	setTextOnClipboard (std::string str) noexcept=0

void	updateToNextKeyboardTarget (Widget *currentTargetWidget) noexcept

void	updateToPrevKeyboardTarget (Widget *currentTargetWidget) noexcept

Data Fields
State	state = State::NoDevice

Cursor	currentCursor = Cursor::None
	The current cursor.

std::atomic< bool >	forceLayout = true
	When set to true the widgets will be layed out.

std::atomic< bool >	forceRedraw = true
	When set to true the widgets will be redrawn.

std::atomic< bool >	resizing = false

std::atomic< bool >	active = false

Size	size = Size::Normal

fast_mutex	widgetSolverMutex
	Mutex for access to rhea objects registered with the widgetSolver.

ivec	minimumWindowExtent
	The minimum window extent as calculated by laying out all the widgets.

ivec	maximumWindowExtent
	The maximum window extent as calculated by laying out all the widgets.

ivec	currentWindowExtent
	The current window extent as set by the GPU library.

std::shared_ptr< WindowDelegate >	delegate

Label	title

GUIDevice *	device = nullptr

SubpixelOrientation	subpixelOrientation = SubpixelOrientation::BlueRight

float	dpi = 72.0

std::unique_ptr< Widget >	widget
	The widget covering the complete window.

Widget *	mouseTargetWidget = nullptr
	Target of the mouse Since any mouse event will change the target this is used to check if the target has changed, to send exit events to the previous mouse target.

Widget *	keyboardTargetWidget = nullptr
	Target of the keyboard widget where keyboard events are sent to.

Widget *	firstKeyboardWidget = nullptr
	The first widget in the window that needs to be selected.

Widget *	lastKeyboardWidget = nullptr
	The first widget in the window that needs to be selected.

Detailed Description

A Window. This Window is backed by a native operating system window with a Vulkan surface. The Window should not have any decorations, which are to be drawn by the GUI, because modern design requires drawing of user interface elements in the border.

Member Enumeration Documentation

◆ State

enum class tt::Window_base::State

strong

Enumerator
Initializing	The window has not been initialized yet.
NoWindow	The window was destroyed, the device will drop the window on the next render cycle.
NoDevice	No device is associated with the Window and can therefor not be rendered on.
NoSurface	Need to request a new surface before building a swapchain.
ReadyToRender	Need to request a swapchain before rendering. The swapchain is ready drawing is allowed.
SwapchainLost	The window was resized, the swapchain needs to be rebuild and can not be rendered on.
SurfaceLost	The Vulkan surface on the window was destroyed.
DeviceLost	The device was lost, but the window could move to a new device, or the device can be recreated.
WindowLost	The window was destroyed, need to cleanup.

Member Function Documentation

◆ fontScale()

float tt::Window_base::fontScale ( ) const

inlinenoexcept

By how much the font needs to be scaled compared to current windowScale.

Widgets should pass this value to the text-shaper.

◆ layoutChildren()

int tt::Window_base::layoutChildren	(	hires_utc_clock::time_point	displayTimePoint,
		bool	force )

Layout the widgets in the window.

Returns: bit 0: Request redraw, bit 1: Request layout.

◆ makeWidget()

template<typename T , typename... Args>

T & tt::Window_base::makeWidget ( Args &&... args )

Add a widget to main widget of the window.

Add a widget to the main widget of the window.

The implementation is in Widget.hpp

The implementation is located here so that widget is a concrete type.

◆ render()

virtual void tt::Window_base::render ( hires_utc_clock::time_point displayTimePoint )

pure virtual

Update window. This will update animations and redraw all widgets managed by this window.

Implemented in tt::Window_vulkan.

◆ setDevice()

void tt::Window_base::setDevice ( GUIDevice * device )

Set GPU device to manage this window. Change of the device may be done at runtime.

◆ unsetDevice()

void tt::Window_base::unsetDevice ( )

inline

Remove the GPU device from the window, making it an orphan.

Field Documentation

◆ active

std::atomic<bool> tt::Window_base::active = false

The window is currently active. Widgets may want to reduce redraws, or change colors.

◆ currentCursor

Cursor tt::Window_base::currentCursor = Cursor::None

The current cursor.

Used for optimizing when the operating system cursor is updated. Set to Cursor::None at the start (for the wait icon) and when the operating system is going to display another icon to make sure when it comes back in the application the cursor will be updated correctly.

◆ currentWindowExtent

ivec tt::Window_base::currentWindowExtent

The current window extent as set by the GPU library.

◆ dpi

float tt::Window_base::dpi = 72.0

Dots-per-inch of the screen where the window is located. If the window is located on multiple screens then one of the screens is used as the source for the DPI value.

◆ firstKeyboardWidget

Widget* tt::Window_base::firstKeyboardWidget = nullptr

The first widget in the window that needs to be selected.

This widget is selected when the window is opened and when pressing tab when no other widget is selected.

◆ forceLayout

std::atomic<bool> tt::Window_base::forceLayout = true

When set to true the widgets will be layed out.

◆ forceRedraw

std::atomic<bool> tt::Window_base::forceRedraw = true

When set to true the widgets will be redrawn.

◆ keyboardTargetWidget

Widget* tt::Window_base::keyboardTargetWidget = nullptr

Target of the keyboard widget where keyboard events are sent to.

◆ lastKeyboardWidget

Widget* tt::Window_base::lastKeyboardWidget = nullptr

The first widget in the window that needs to be selected.

This widget is selected when pressing shift-tab when no other widget is selected.

◆ maximumWindowExtent

ivec tt::Window_base::maximumWindowExtent

The maximum window extent as calculated by laying out all the widgets.

◆ minimumWindowExtent

ivec tt::Window_base::minimumWindowExtent

The minimum window extent as calculated by laying out all the widgets.

◆ mouseTargetWidget

Widget* tt::Window_base::mouseTargetWidget = nullptr

Target of the mouse Since any mouse event will change the target this is used to check if the target has changed, to send exit events to the previous mouse target.

◆ resizing

std::atomic<bool> tt::Window_base::resizing = false

The window is currently being resized by the user. We can disable expensive redraws during rendering until this is false again.

◆ size

Size tt::Window_base::size = Size::Normal

Current size state of the window.

◆ subpixelOrientation

SubpixelOrientation tt::Window_base::subpixelOrientation = SubpixelOrientation::BlueRight

Orientation of the RGB subpixels.

◆ widget

std::unique_ptr<Widget> tt::Window_base::widget

The widget covering the complete window.

◆ widgetSolverMutex

fast_mutex tt::Window_base::widgetSolverMutex

Mutex for access to rhea objects registered with the widgetSolver.

Widgets will need to lock this mutex when reading variables or equations.

The documentation for this class was generated from the following files:

hikogui/src/TTauri/GUI/Window_base.hpp
hikogui/src/TTauri/Widgets/widgets.hpp
