tt::Window_vulkan Class Reference

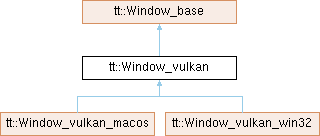

Inheritance diagram for tt::Window_vulkan:

Public Member Functions
	Window_vulkan (std::shared_ptr< WindowDelegate > const &delegate, Label &&title)
	Window_vulkan (const Window_vulkan &)=delete
Window_vulkan &	operator= (const Window_vulkan &)=delete
	Window_vulkan (Window_vulkan &&)=delete
Window_vulkan &	operator= (Window_vulkan &&)=delete
void	initialize () override
void	render (hires_utc_clock::time_point displayTimePoint) override
Public Member Functions inherited from tt::Window_base
float	fontScale () const noexcept
	By how much the font needs to be scaled compared to current windowScale.
	Window_base (std::shared_ptr< WindowDelegate > const &delegate, Label &&title)
	Window_base (Window_base const &)=delete
Window_base &	operator= (Window_base const &)=delete
	Window_base (Window_base &&)=delete
Window_base &	operator= (Window_base &&)=delete
void	setDevice (GUIDevice *device)
void	unsetDevice ()
void	layout (hires_utc_clock::time_point displayTimePoint)
int	layoutChildren (hires_utc_clock::time_point displayTimePoint, bool force)
	Layout the widgets in the window.
bool	isClosed ()
template<typename T , typename... Args>
T &	makeWidget (Args &&... args)
	Add a widget to main widget of the window.
rhea::constraint	addConstraint (rhea::constraint const &constraint) noexcept
rhea::constraint	addConstraint (rhea::linear_equation const &equation, rhea::strength const &strength=rhea::strength::required(), double weight=1.0) noexcept
rhea::constraint	addConstraint (rhea::linear_inequality const &equation, rhea::strength const &strength=rhea::strength::required(), double weight=1.0) noexcept
void	removeConstraint (rhea::constraint const &constraint) noexcept
rhea::constraint	replaceConstraint (rhea::constraint const &oldConstraint, rhea::constraint const &newConstraint) noexcept
rhea::constraint	replaceConstraint (rhea::constraint const &oldConstraint, rhea::linear_equation const &newEquation, rhea::strength const &strength=rhea::strength::required(), double weight=1.0) noexcept
rhea::constraint	replaceConstraint (rhea::constraint const &oldConstraint, rhea::linear_inequality const &newEquation, rhea::strength const &strength=rhea::strength::required(), double weight=1.0) noexcept
virtual void	setCursor (Cursor cursor)=0
virtual void	closeWindow ()=0
virtual void	minimizeWindow ()=0
virtual void	maximizeWindow ()=0
virtual void	normalizeWindow ()=0
virtual void	setWindowSize (ivec extent)=0
virtual std::string	getTextFromClipboard () const noexcept=0
virtual void	setTextOnClipboard (std::string str) noexcept=0
void	updateToNextKeyboardTarget (Widget *currentTargetWidget) noexcept
void	updateToPrevKeyboardTarget (Widget *currentTargetWidget) noexcept

Data Fields
vk::SurfaceKHR	intrinsic
vk::SwapchainKHR	swapchain
int	nrSwapchainImages
vk::Extent2D	swapchainImageExtent
vk::SurfaceFormatKHR	swapchainImageFormat
std::vector< vk::Image >	swapchainImages
std::vector< vk::ImageView >	swapchainImageViews
std::vector< vk::Framebuffer >	swapchainFramebuffers
VmaAllocation	depthImageAllocation
vk::Image	depthImage
vk::ImageView	depthImageView
VmaAllocation	colorImageAllocation
vk::Image	colorImage
vk::ImageView	colorImageView
vk::DescriptorImageInfo	colorDescriptorImageInfo
vk::RenderPass	renderPass
vk::CommandBuffer	commandBuffer
vk::Semaphore	imageAvailableSemaphore
vk::Semaphore	renderFinishedSemaphore
vk::Fence	renderFinishedFence
std::unique_ptr< PipelineImage::PipelineImage >	imagePipeline
std::unique_ptr< PipelineFlat::PipelineFlat >	flatPipeline
std::unique_ptr< PipelineBox::PipelineBox >	boxPipeline
std::unique_ptr< PipelineSDF::PipelineSDF >	SDFPipeline
std::unique_ptr< PipelineToneMapper::PipelineToneMapper >	toneMapperPipeline
Data Fields inherited from tt::Window_base
State	state = State::NoDevice
Cursor	currentCursor = Cursor::None
	The current cursor.
std::atomic< bool >	forceLayout = true
	When set to true the widgets will be layed out.
std::atomic< bool >	forceRedraw = true
	When set to true the widgets will be redrawn.
std::atomic< bool >	resizing = false
std::atomic< bool >	active = false
Size	size = Size::Normal
fast_mutex	widgetSolverMutex
	Mutex for access to rhea objects registered with the widgetSolver.
ivec	minimumWindowExtent
	The minimum window extent as calculated by laying out all the widgets.
ivec	maximumWindowExtent
	The maximum window extent as calculated by laying out all the widgets.
ivec	currentWindowExtent
	The current window extent as set by the GPU library.
std::shared_ptr< WindowDelegate >	delegate
Label	title
GUIDevice *	device = nullptr
SubpixelOrientation	subpixelOrientation = SubpixelOrientation::BlueRight
float	dpi = 72.0
std::unique_ptr< Widget >	widget
	The widget covering the complete window.
Widget *	mouseTargetWidget = nullptr
	Target of the mouse Since any mouse event will change the target this is used to check if the target has changed, to send exit events to the previous mouse target.
Widget *	keyboardTargetWidget = nullptr
	Target of the keyboard widget where keyboard events are sent to.
Widget *	firstKeyboardWidget = nullptr
	The first widget in the window that needs to be selected.
Widget *	lastKeyboardWidget = nullptr
	The first widget in the window that needs to be selected.

Static Public Attributes
static const vk::Format	depthImageFormat = vk::Format::eD32Sfloat
static const vk::Format	colorImageFormat = vk::Format::eR16G16B16A16Sfloat

Additional Inherited Members
Public Types inherited from tt::Window_base
enum class	State {   Initializing , NoWindow , NoDevice , NoSurface ,   NoSwapchain , ReadyToRender , SwapchainLost , SurfaceLost ,   DeviceLost , WindowLost }
enum class	Size { Normal , Minimized , Maximized }

Member Function Documentation

initialize()

void tt::Window_vulkan::initialize ( )

overridevirtual

Reimplemented from tt::Window_base.

render()

void tt::Window_vulkan::render ( hires_utc_clock::time_point displayTimePoint )

overridevirtual

Update window. This will update animations and redraw all widgets managed by this window.

Implements tt::Window_base.

---

The documentation for this class was generated from the following file:

• hikogui/src/TTauri/GUI/Window_vulkan.hpp
